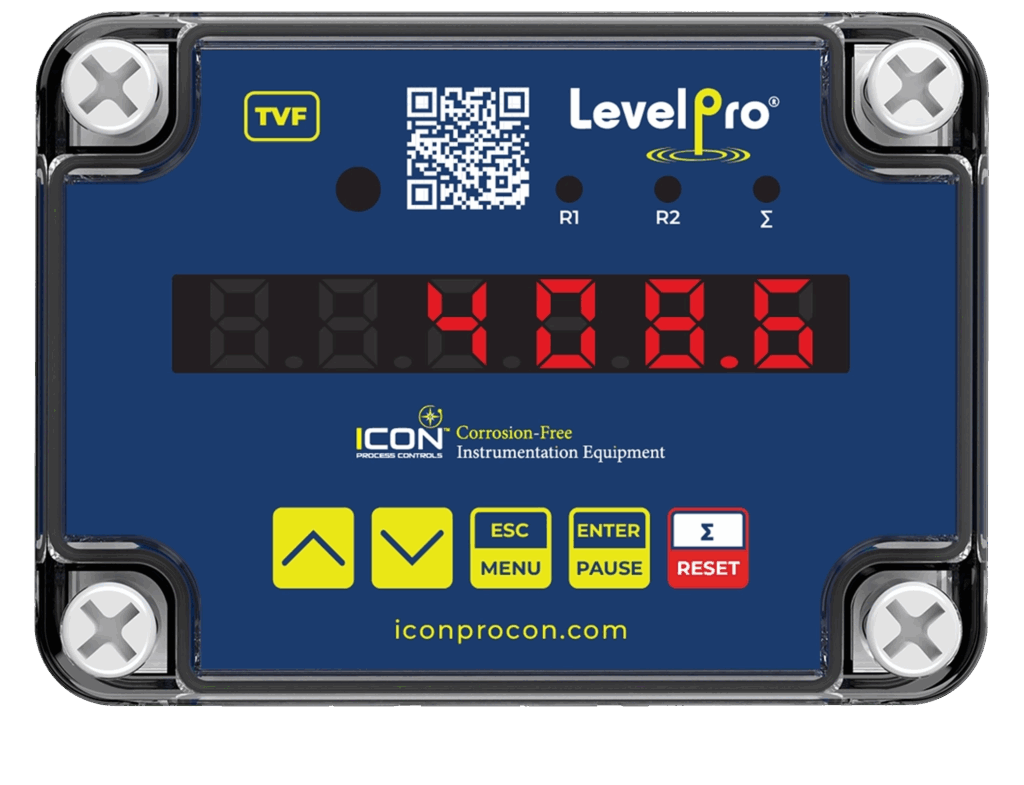

TVF Flow Display & Batcher

The TVF Series Flow Display & Batcher is the industry’s most rugged and reliable wall-mount remote display. The TVF Series will display both Flow Rate and Flow Total up to 16 digits. LevelPro® TVF Series comes as a complete all-in-one unit, out of the box it is ready to use. Included is a bright LED Display, NEMA 4X Enclosure, Polycarbonate Faceplate, Cord Grips and Plastic Captive Screws.

The industrial design of the TVF Series ensures that it will withstand the industry’s most corrosive environments. Available with either 2 Relay Outputs or 1 Relay + 4-20mA Output, the TVF Series is great for automating your batching or dosing applications.

Features:

• All in one: Flow Meter | Batcher | Totalizer
• 2 Relay Outputs
• NEMA 4X Enclosure
• Power Grips Included
• Power Supply Output 24V DC
• 4-20mA Output + Relay Output

Technical Features

Features	TVF	TVF-450
Power Supply	85 – 260 VAC	85 – 260 VAC
Input	Pulse | 4-20mA | Voltage	NPN Frequency Pulse
Output	2 Relay | 1 Relay + 4-20mA	24VDC to Sensor
Display	6 digit LED	(2x) 6-digit LED display
Application	Flow	Flow
Operating Temp.	-40 – 70°C	-40 – 50°C
Case	Wall Mounted | Polycarbonate	Panel Mount
Documentation	PDF	PDF
