Paddle Wheel Flow Sensors
ICON TK

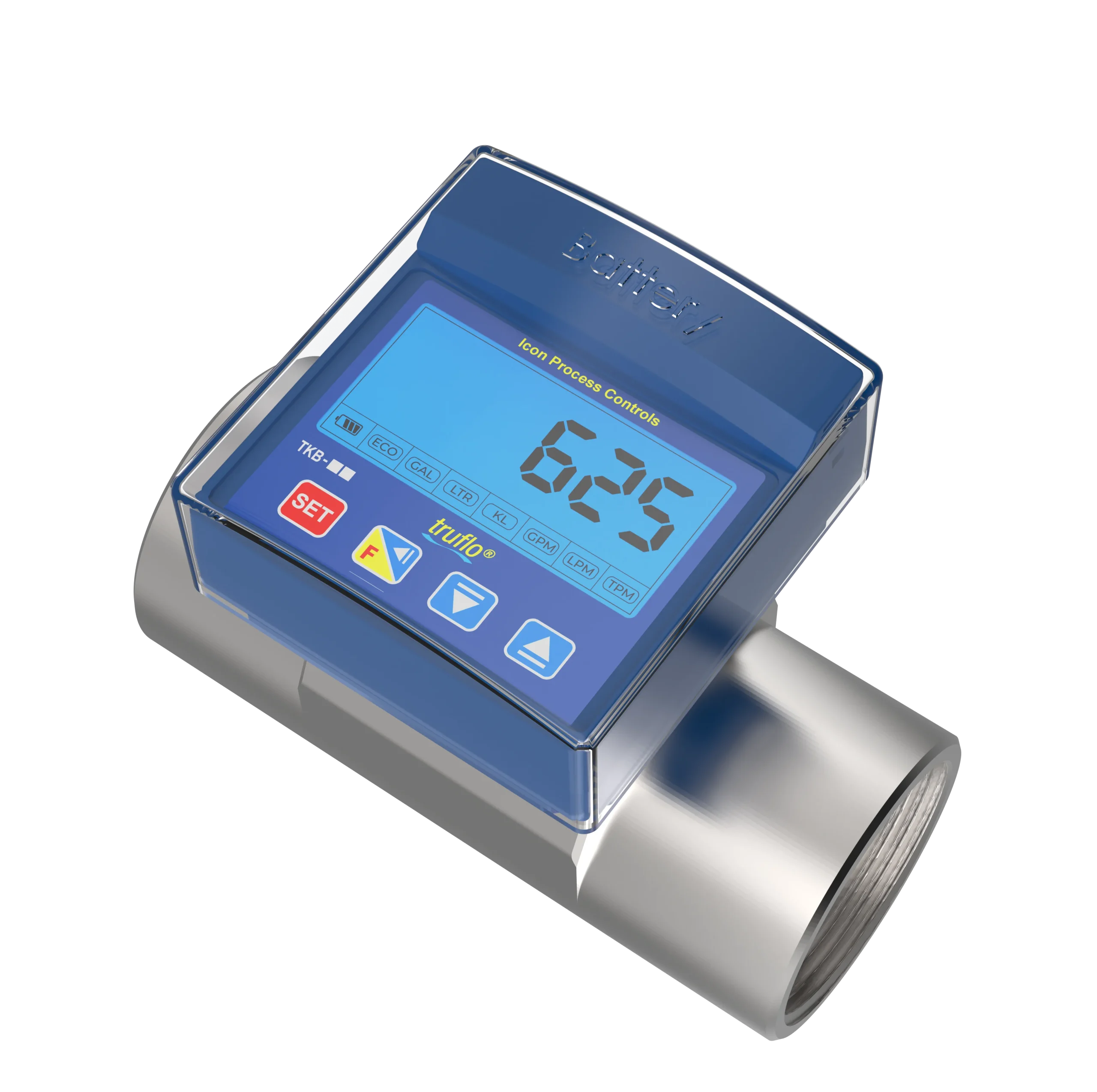

The Paddle Wheel Flow Sensors ICON TK are engineered for reliable and accurate flow measurement in demanding industrial environments. Designed for both corrosive and non-corrosive liquids, these sensors deliver long-term performance and excellent measurement stability across a wide range of process applications.

The TK series features a 360° rotating display for easy viewing and clear indication of flow rate and total flow, depending on the model. With available pulse, voltage, RS485, relay, and 4-20mA outputs, the series can be integrated into a wide variety of monitoring and control systems.

Thanks to their low-drag hydrodynamic paddle wheel design, TK flow sensors achieve high accuracy up to ±0.5%, making them one of the most dependable solutions in the industry. Built from chemical-resistant materials such as PVC, PP, PVDF, and 316 stainless steel, they are ideal for harsh process conditions and industrial water treatment systems.

The series is also designed for ease of use, with no programming required, a bright display, and a durable Tefzel® paddle wheel combined with zirconia ceramic rotor bearings for extended service life.

ICON TK paddle wheel flow sensors are suitable for applications such as liquid chemical dosing, filtration systems, water and wastewater monitoring, industrial chemical distribution, and process skid installations.

Features

• 4-20mA | Pulse output
• Bright LED display | Flow rate | Total
• Lifetime warranty on paddle assembly
• Highest accuracy in the industry: +/- 0.5%
• Chemical-resistant materials: PVC | PP | PVDF | 316SS
• No programming required
• Tefzel® paddle wheel
• Zirconia ceramic rotor | Bearings

Technical Specifications

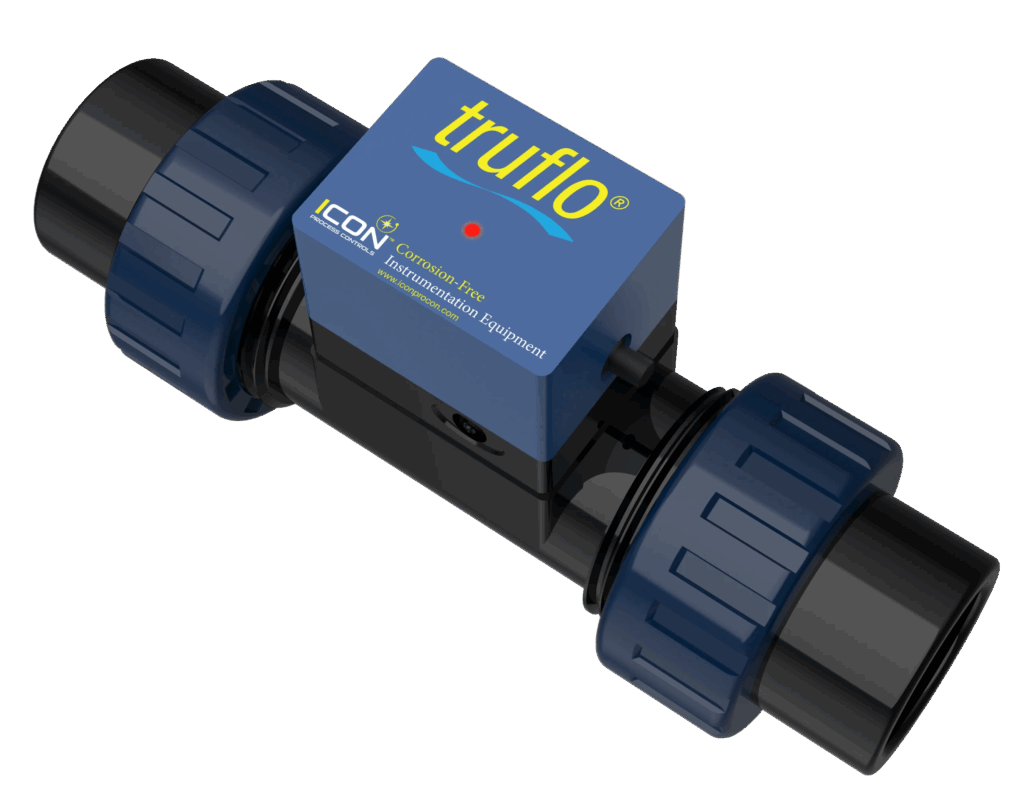

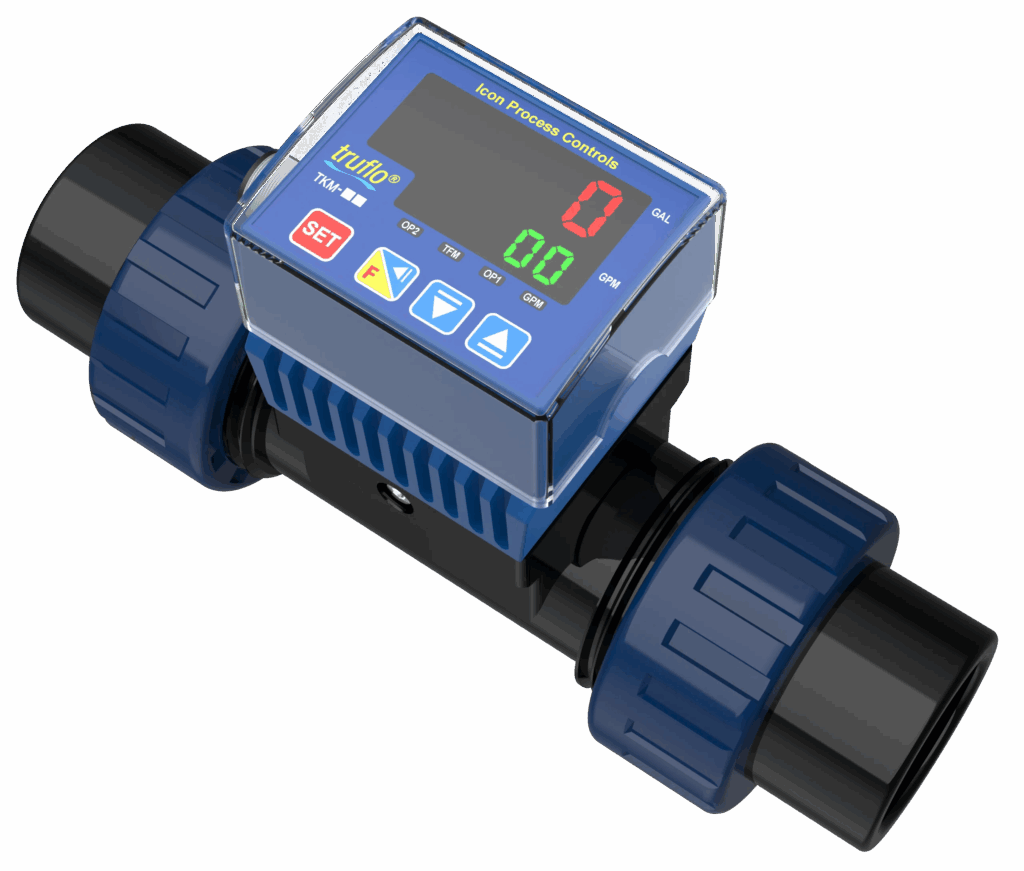

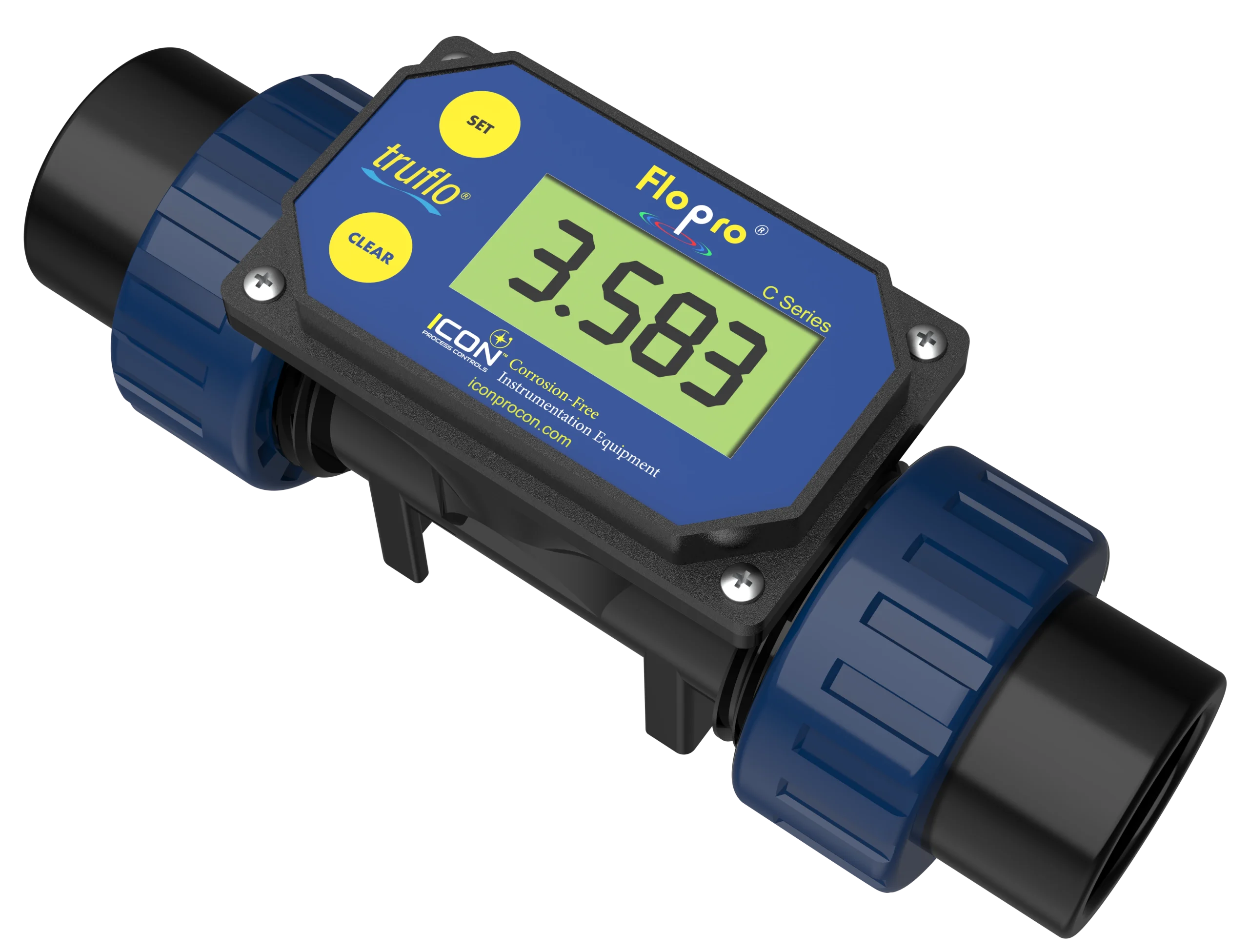

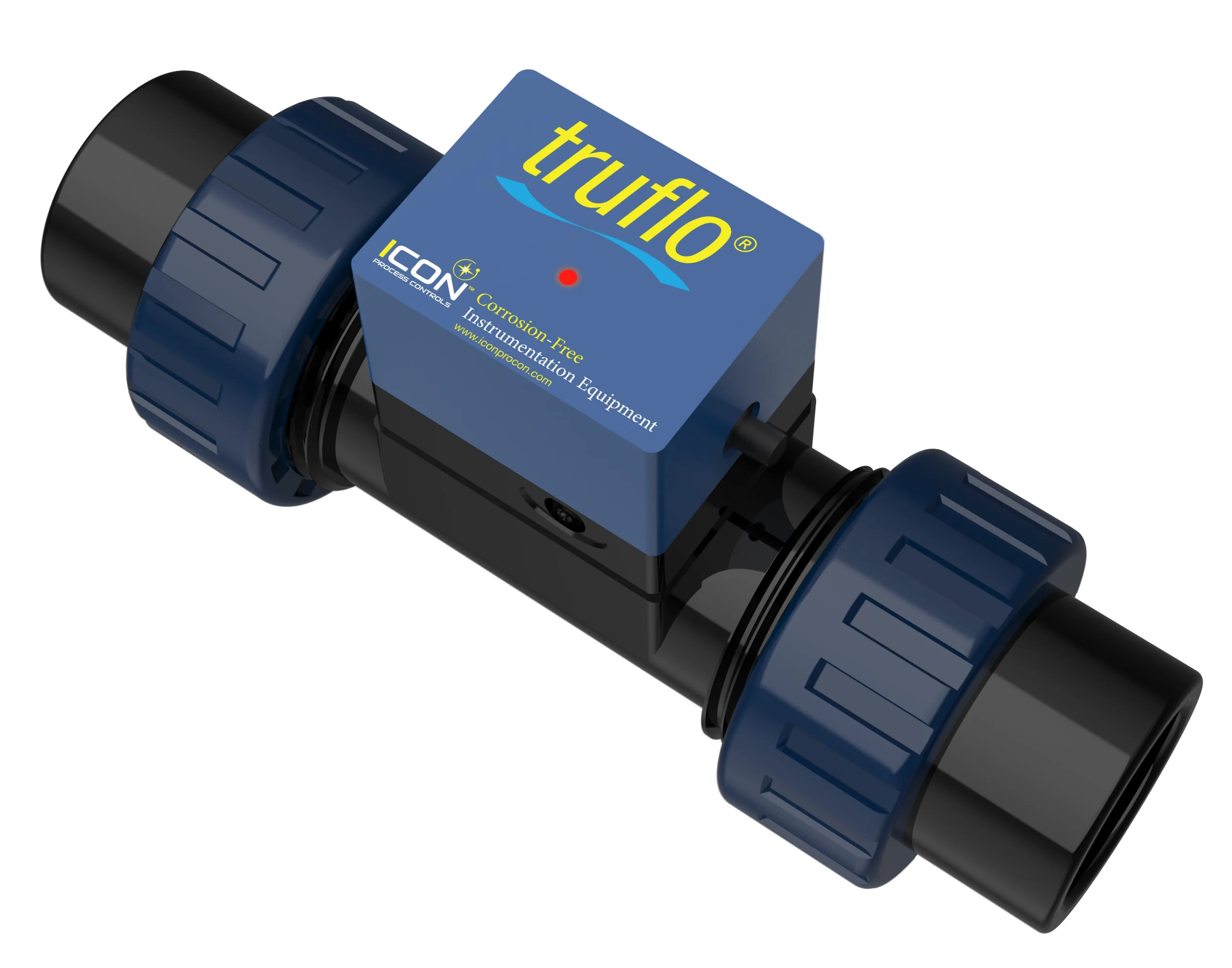

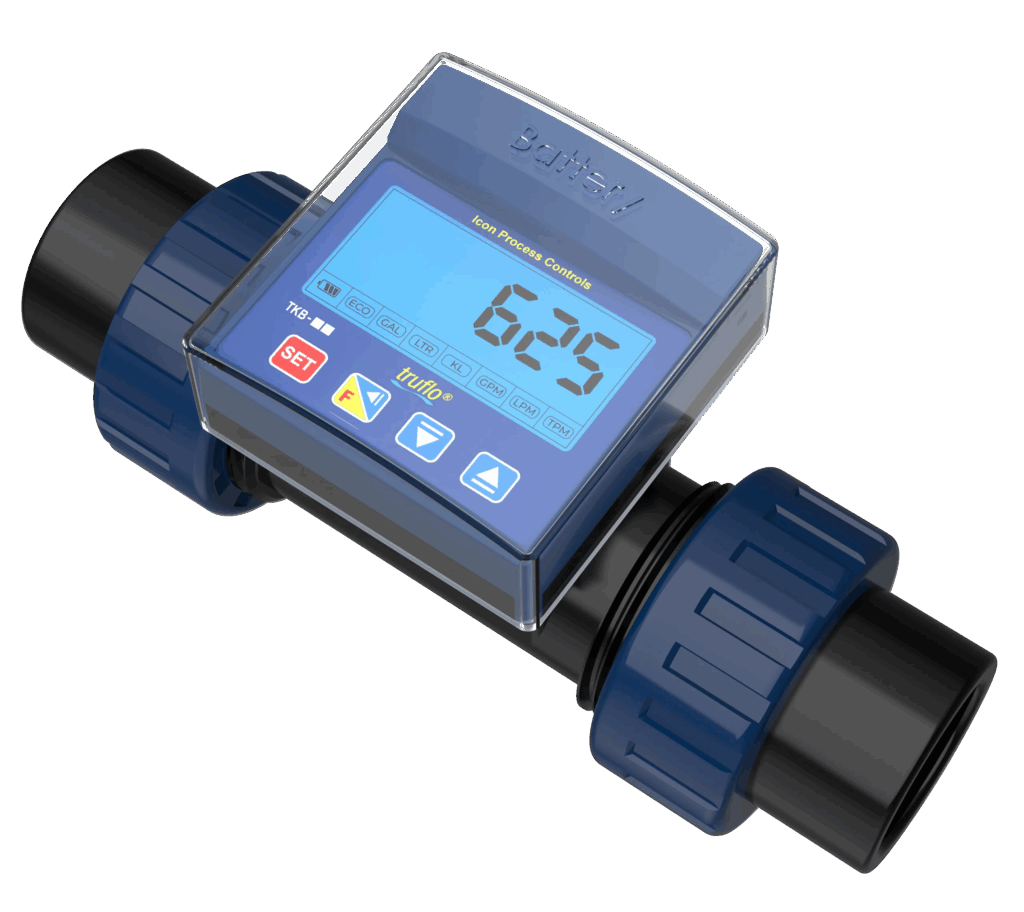

TK series PVC, PP, PVDF

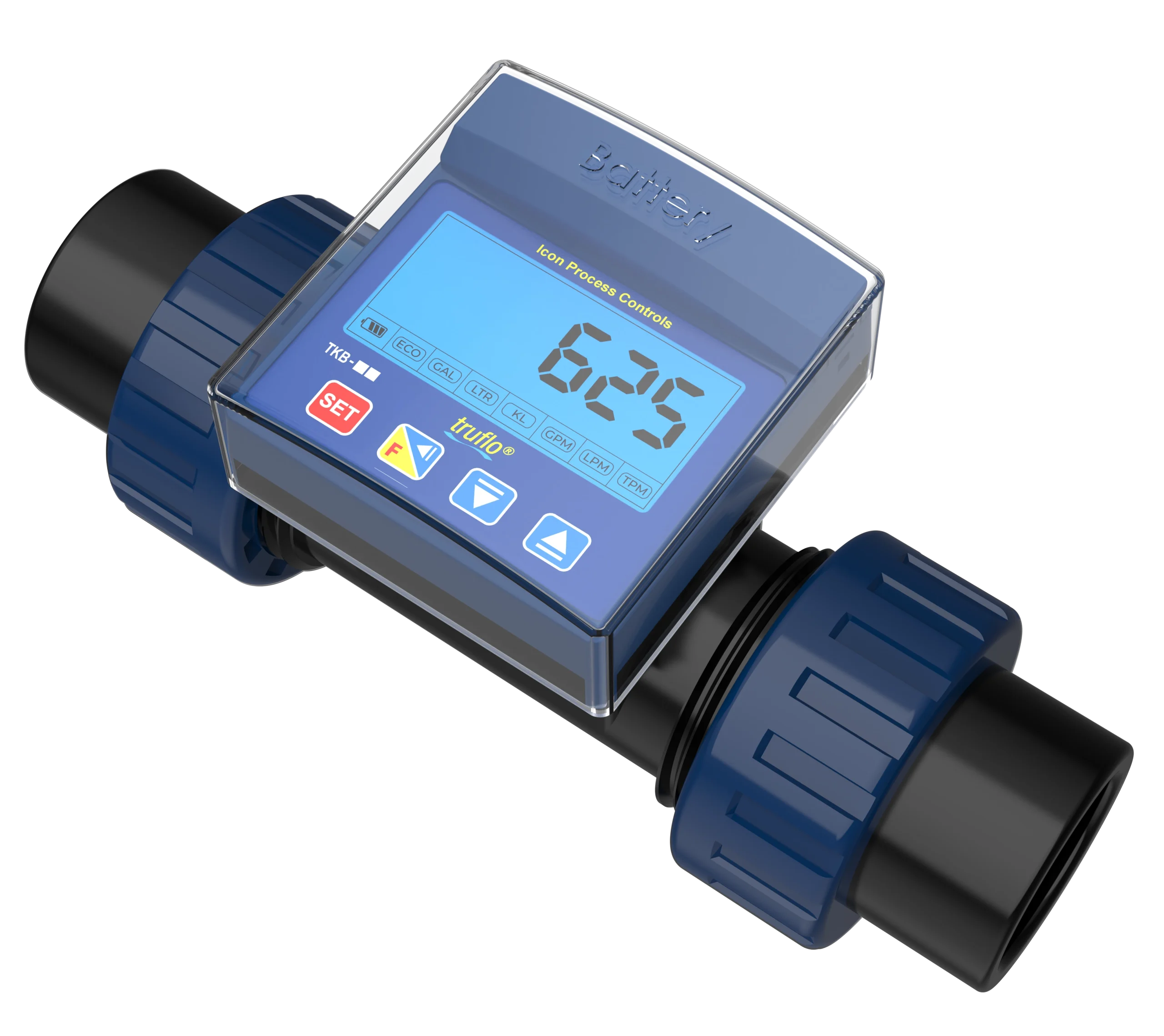

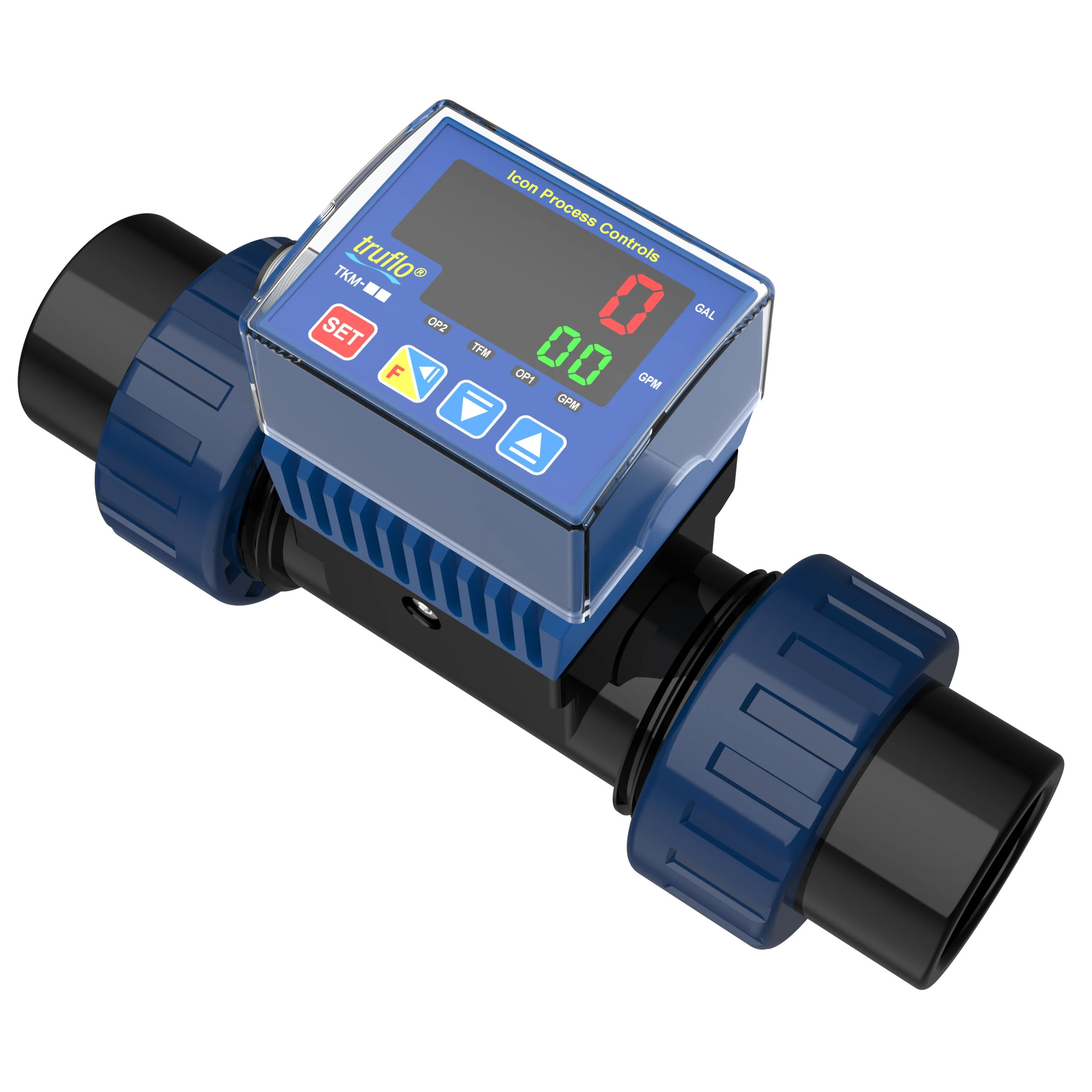

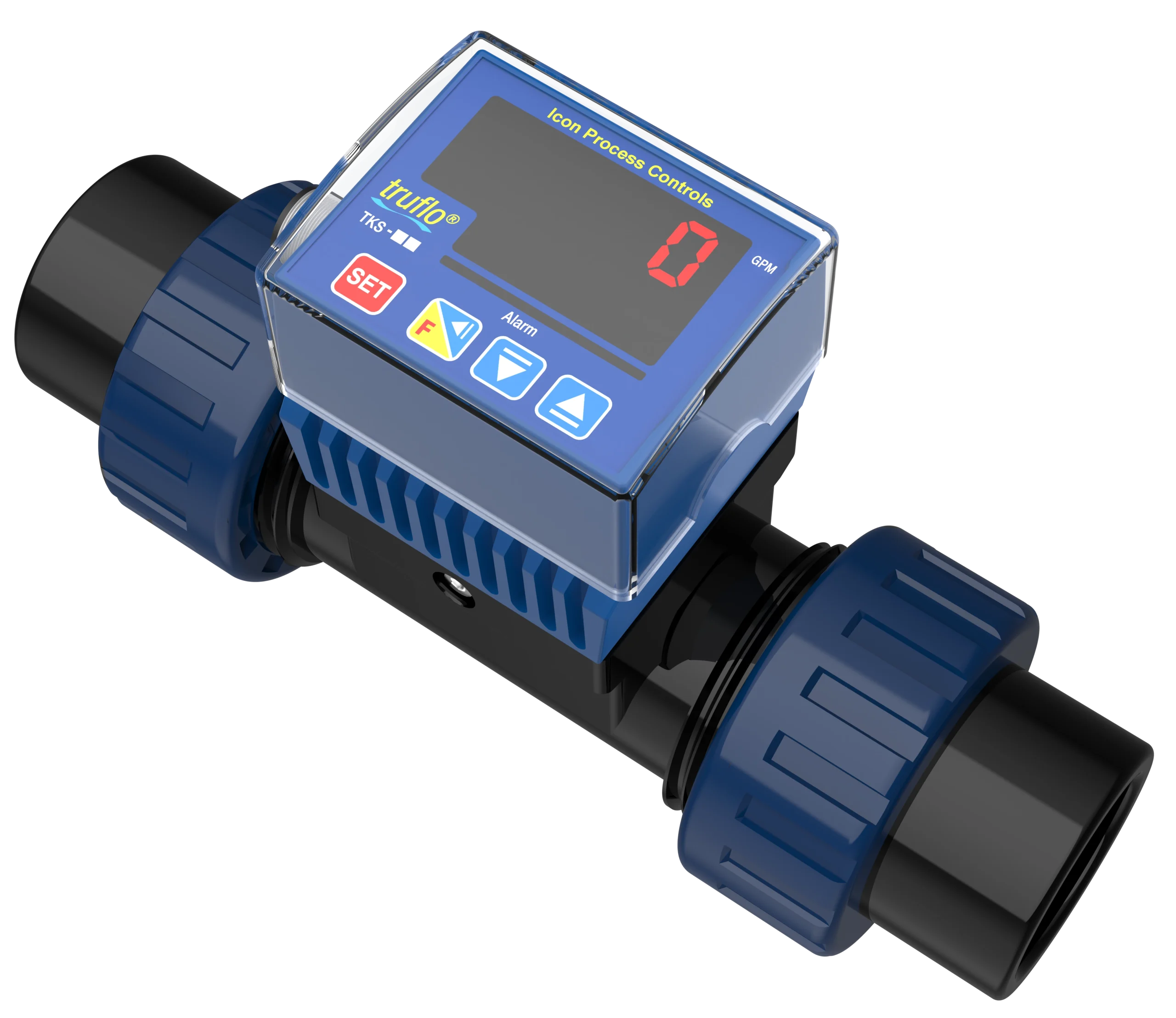

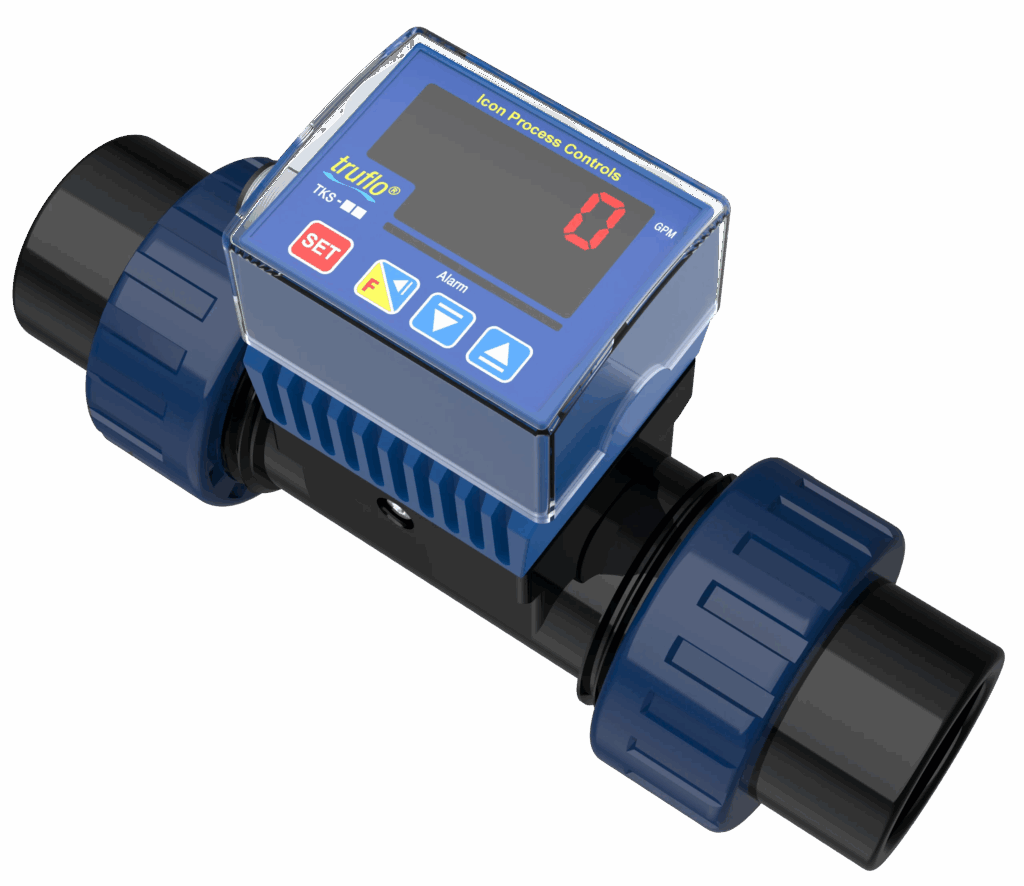

Specifications	TKB	TKS	TKP	TKM	TKW	TCB
Accuracy	+/- 0.5%	+/- 0.5%	+/- 0.5%	+/- 0.5%	+/- 0.5%	+/- 1.0%
Outputs	N/A	Pulse + 1 Amp Relay	Pulse | RS485	Pulse | 4-20mA	Pulse | Voltage | 4-20mA	Pulse
Size range	½-4”	½-4”	½-4”	½-4”	½-4”	½-3”
Operating pressure	150 psi (10.4 bar)	150 psi (10.4 bar)	150 psi (10.4 bar)	150 psi (10.4 bar)	150 psi (10.4 bar)	150 psi (10.4 bar)
Display	LCD Flow + Total	LED Flow	LED Flow + Total	LED Flow + Total	Blind | LED Indicator	LCD Flow + Total
Maximum/Minimum flow velocity	1 ft/s – 33 ft/s	1 ft/s – 33 ft/s	1 ft/s – 33 ft/s	1 ft/s – 33 ft/s	1 ft/s – 33 ft/s	1 ft/s – 33 ft/s
Power supply	3 VDC Battery	10-30 VDC	10-30 VDC	10-30 VDC	10-30 VDC	3 VDC Battery
Technical Manual	PDF	PDF	PDF	PDF	PDF	PDF

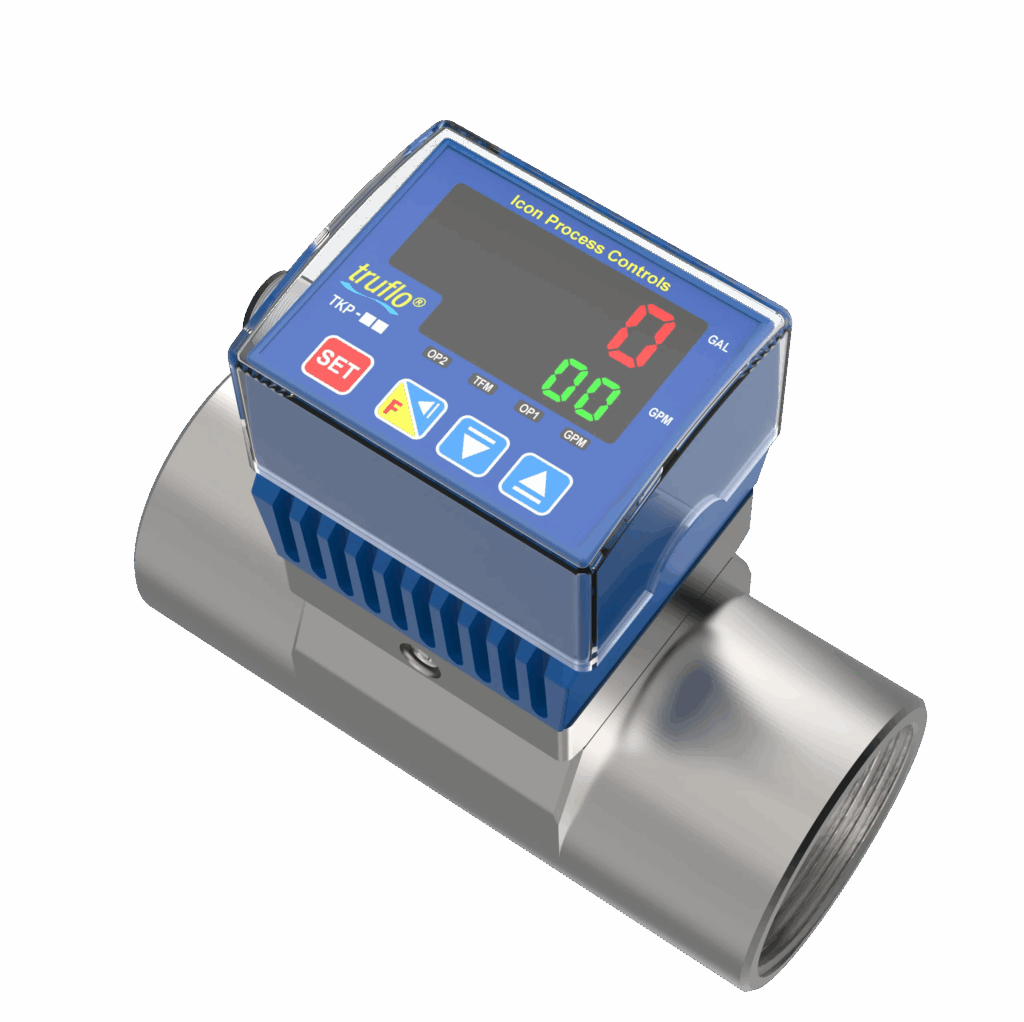

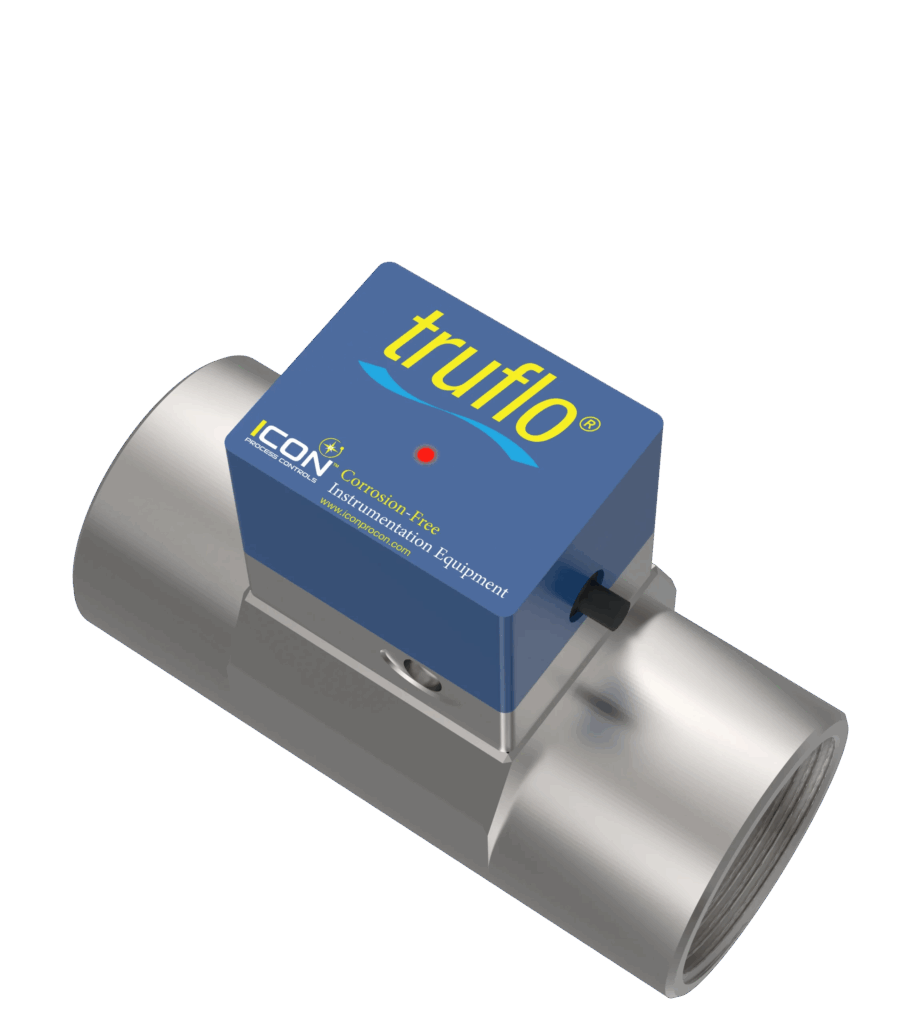

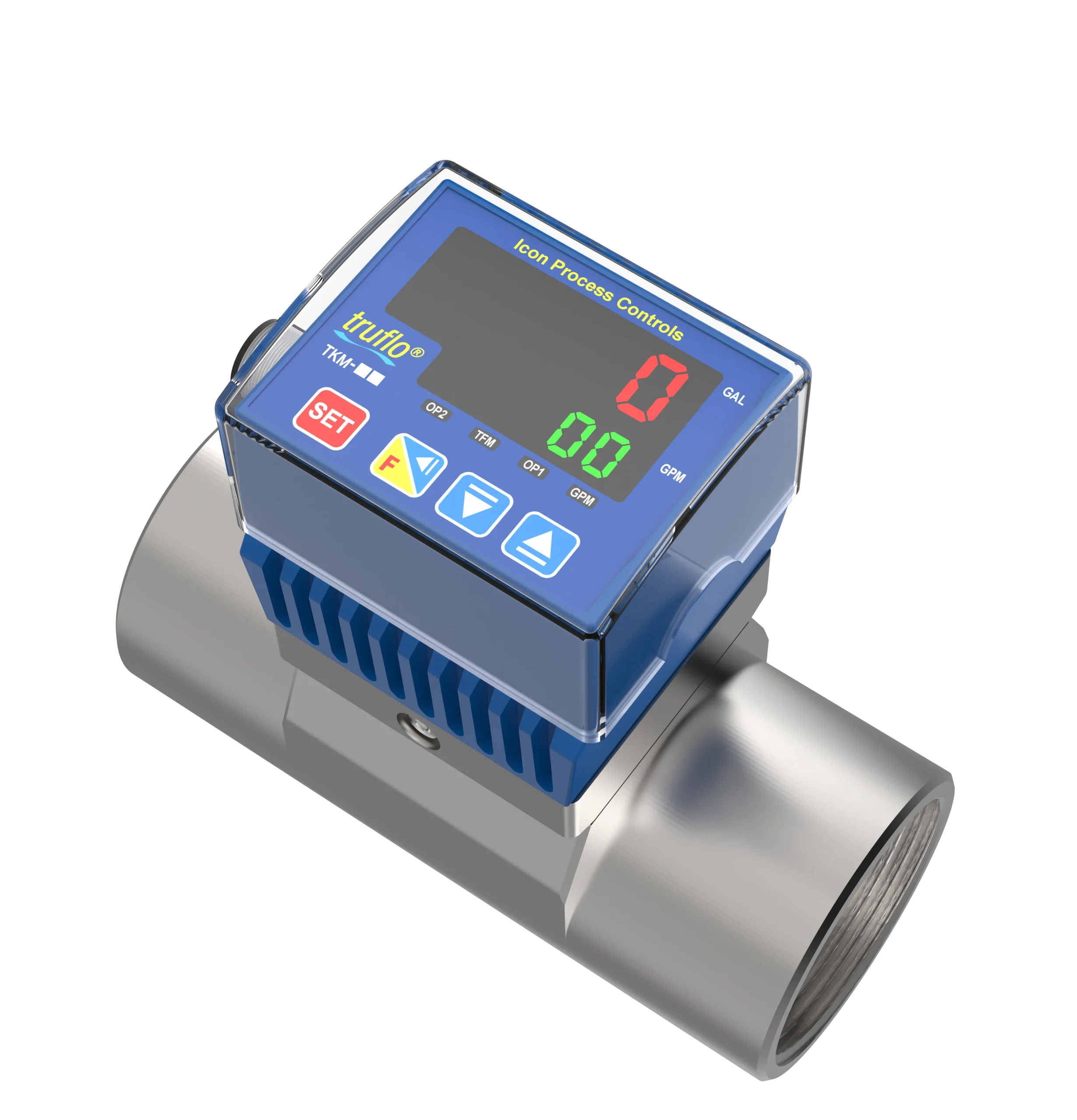

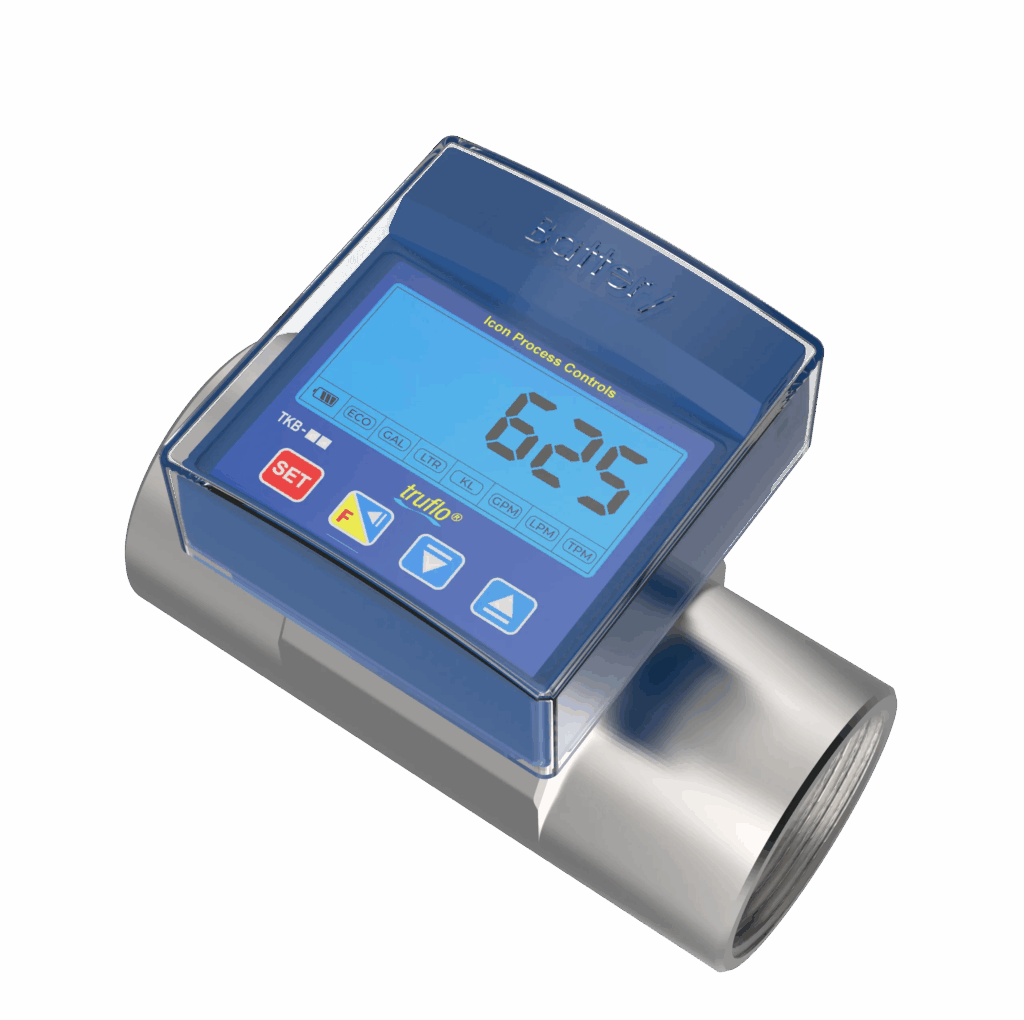

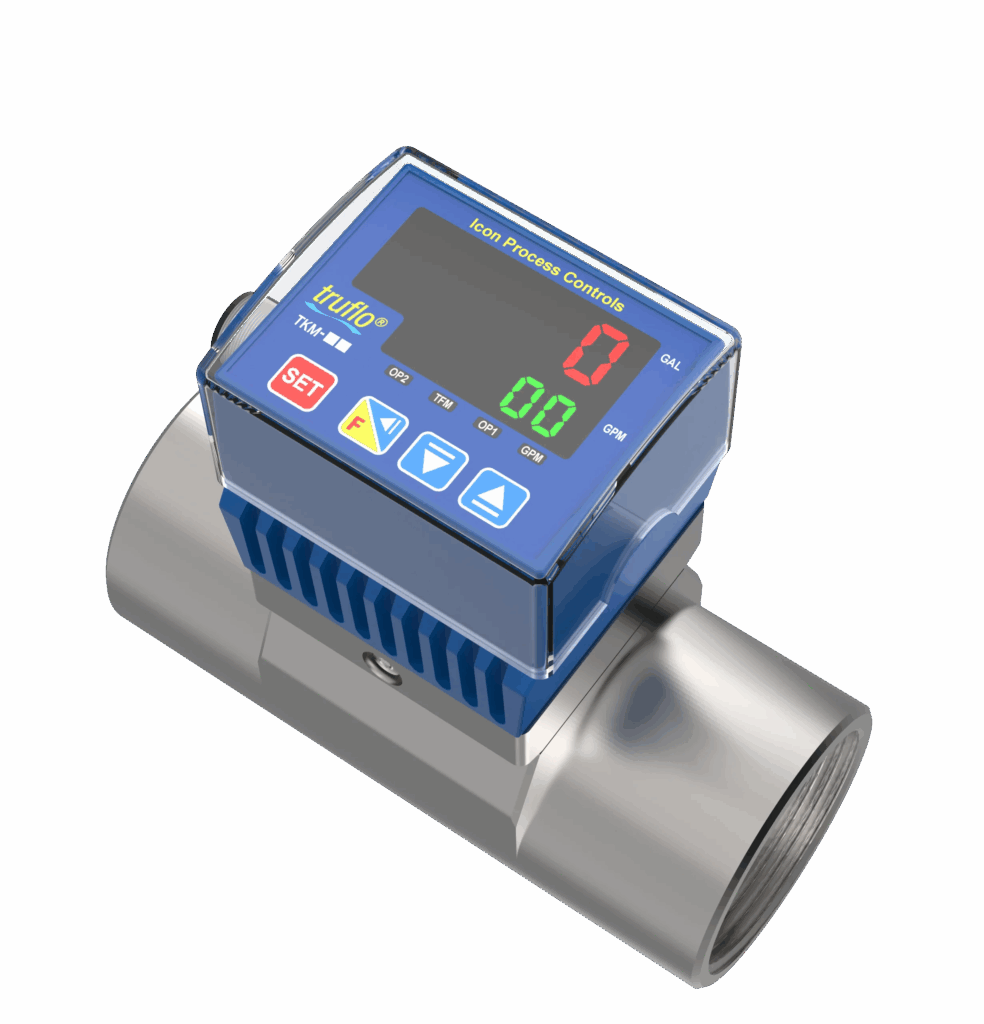

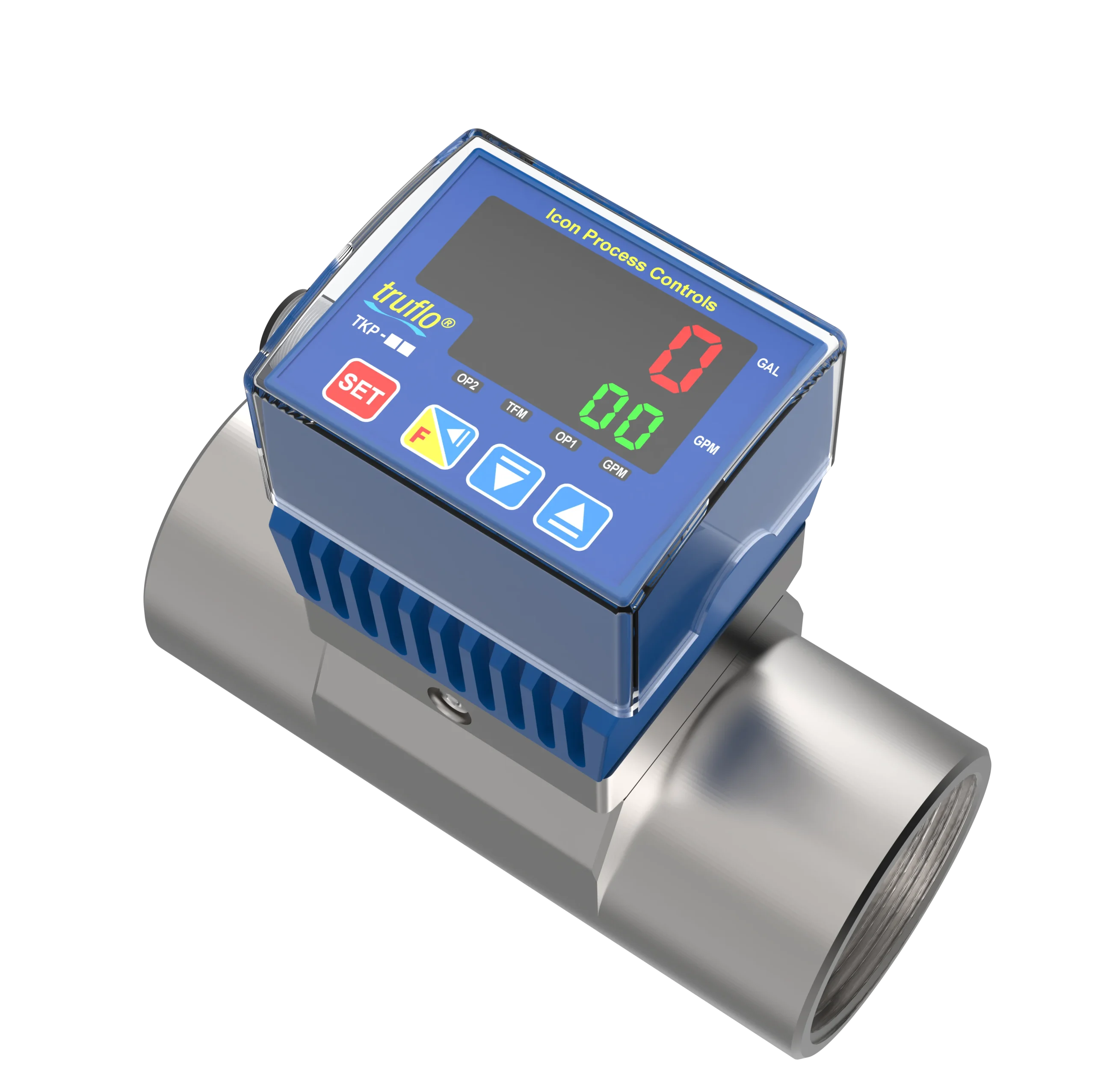

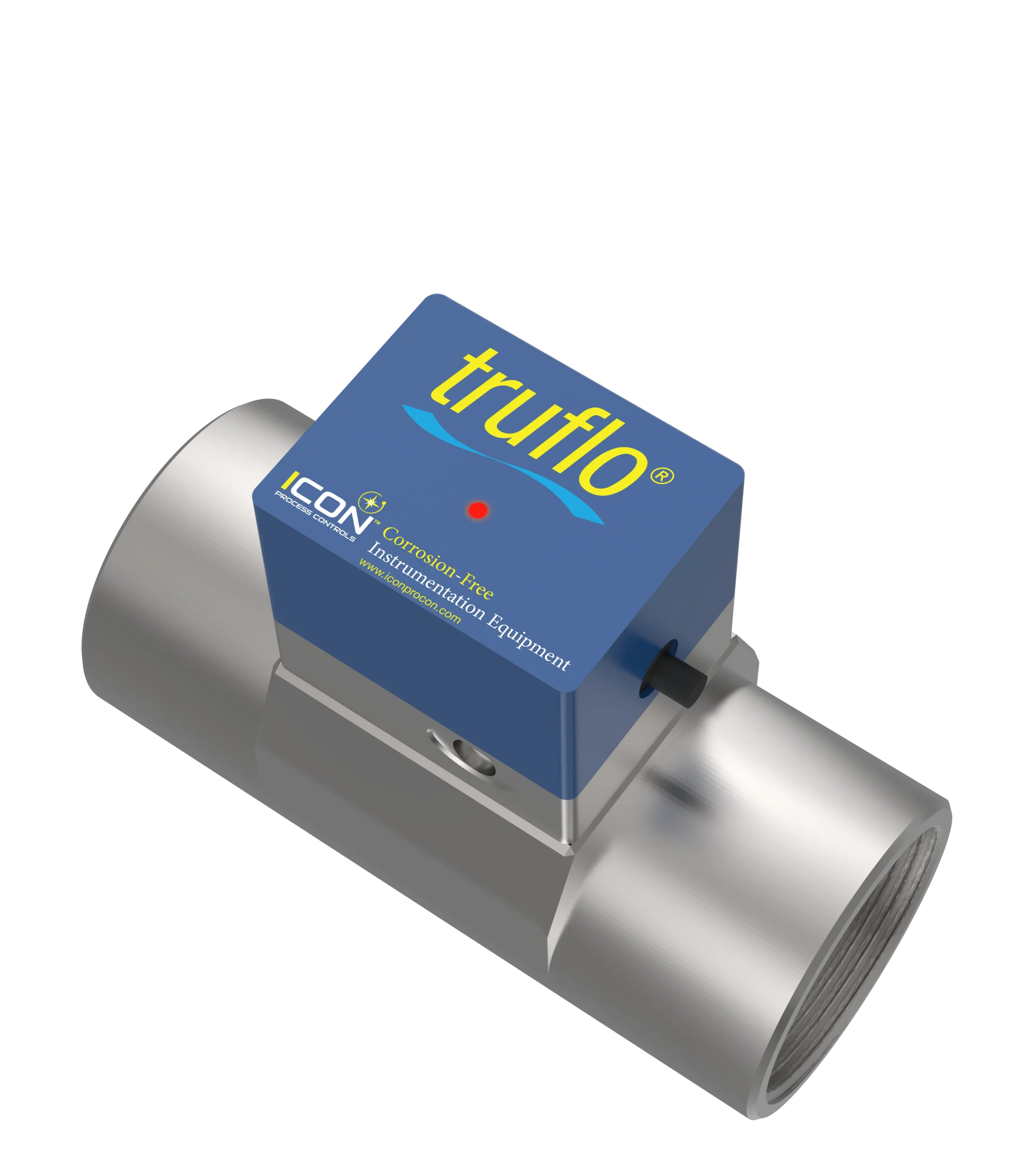

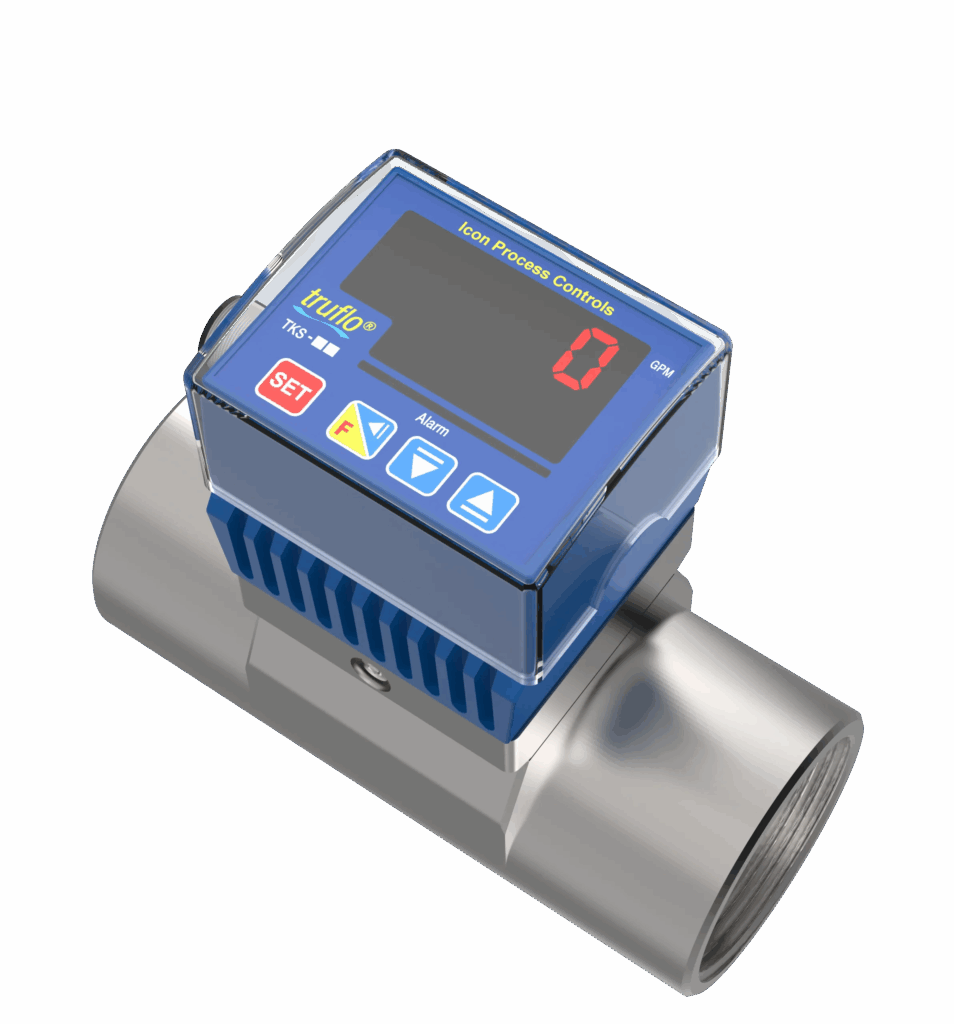

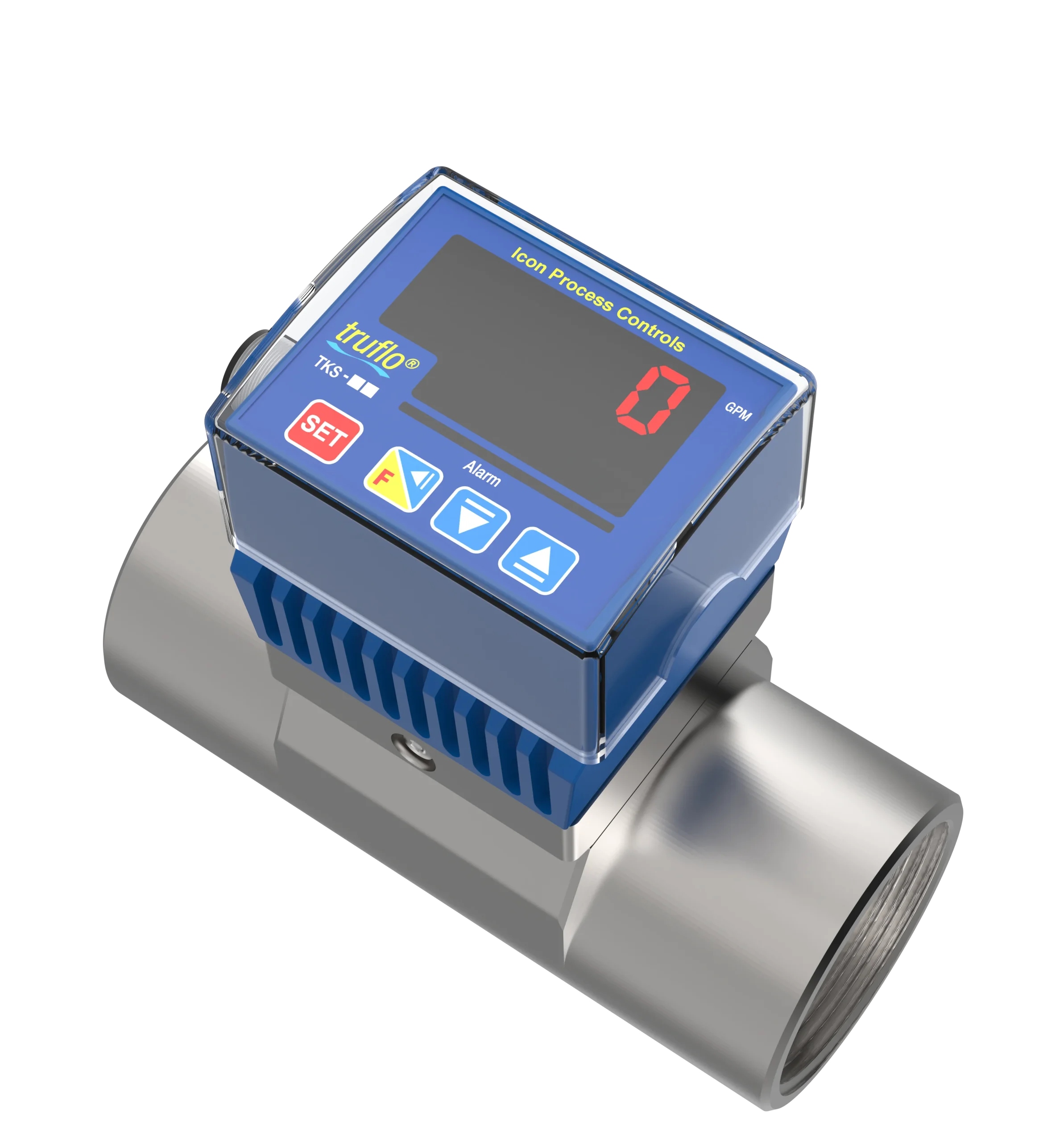

TK3 series SS316
Specifications	TK3B	TK3S	TK3P	TK3M	TK3W
Accuracy	+/- 0.5%	+/- 0.5%	+/- 0.5%	+/- 0.5%	+/- 0.5%
Outputs	N/A	Pulse + 1 Amp Relay	Pulse | RS485	Pulse | 4-20mA	Pulse | Voltage | 4-20mA
Size range	1⁄4-4”	1⁄4-4”	1⁄4-4”	1⁄4-4”	1⁄4-4”
Operating pressure	150 psi (10.4 bar)	150 psi (10.4 bar)	150 psi (10.4 bar)	150 psi (10.4 bar)	150 psi (10.4 bar)
Display	LCD Flow + Total	LED Flow	LED Flow + Total	LED Flow + Total	Blind | LED Indicator
Maximum/Minimum flow velocity	1 ft/s – 33 ft/s	1 ft/s – 33 ft/s	1 ft/s – 33 ft/s	1 ft/s – 33 ft/s	1 ft/s – 33 ft/s
Power supply	3 VDC Battery	10-30 VDC	10-30 VDC	10-30 VDC	10-30 VDC
Technical Manual	PDF	PDF	PDF	PDF	PDF

Typical Applications

• Liquid chemical flow measurement
• Filtration systems
• Water & wastewater monitoring
• Industrial chemical distribution
• Chemical process skids
• Liquid consumption monitoring
• Discharge verification
