Peristaltic Pumps Dura up to 15.3 m3/h

Verderflex Dura

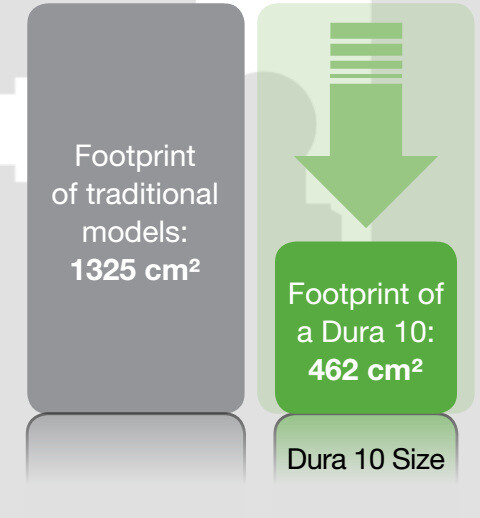

Περισταλτική Αντλία Dura FootPrintThe innovative hose pump is highly compact and easy to maintain. Its unique design reduces the footprint by up to 70% compared to conventional peristaltic pumps.

The Dura range performs exceptionally well with abrasive slurries, dry running liquid feeds, shear sensitive polymers, high viscosity sludge and dosing applications.





Compact, innovative and reliable peristaltic pump

Thanks to its innovative design, the Verderflex Dura peristaltic pump achieves maximum performance and optimum cooling of the pump housing and hose. Read more about the innovative peristaltic pump in our new product brochure.



verder peristaltic hose

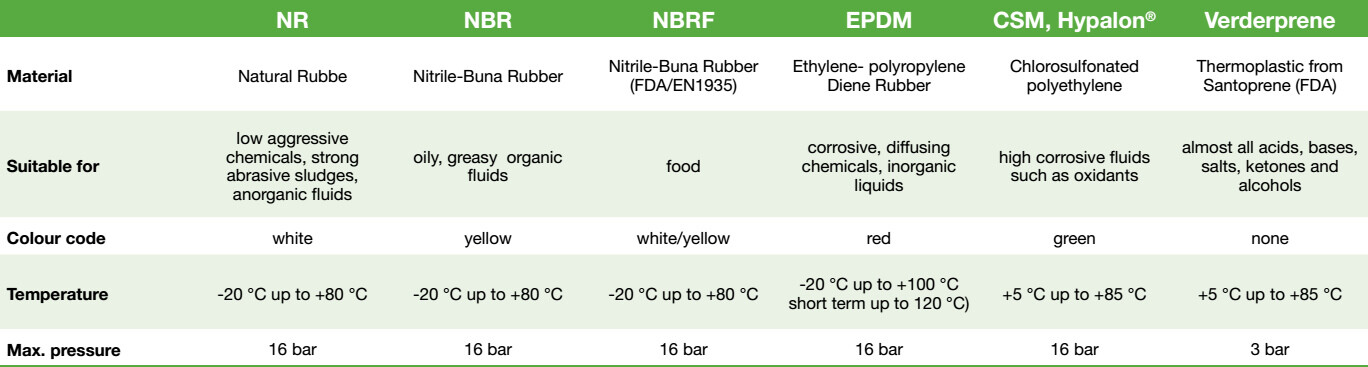

peristaltic hose data



Advantages of the Dura Tube Pump

  • Only the hose is in contact with the fluid
  • Fast hose change
  • Requires up to 70% less floor space
  • Special long life hose design
  • Smoother running leads to longer life
  • Reduced radial forces minimise power consumption
  • Easy hose change
  • Custom-fit hose length, no need to trim hose is completely enclosed in the pump
  • Innovative flanges available in stainless steel, PP and PVDF



Technical Data

Type Max. flow Max. discharge pressure Max. temperature Max. particle size Certificates  TDS

Dura 5

 23 l/h 8 bar 50 °C 1,25 mm Atex

Dura 7

 39 l/h 8 bar 50 °C 1,75 mm Atex

Dura 10

 222 l/h 12 bar 65 °C 2,5 mm Atex, FDA, EC/1935

Dura 15

 593 l/h 12 bar 65 °C 3,75 mm Atex, FDA, EC/1935

Dura 25

 2387 l/h 12 bar 65 °C 6,25 mm Atex, FDA, EC/1935

Dura 35

 5292 l/h 16 bar 65 °C 8,75 mm Atex, FDA, EC/1935

Dura 45

 12240 l/h 16 bar 90 °C 11,25 mm Atex, FDA, EC/1935

Dura 55

 15300 l/h 16 bar 90 °C 13,75 mm Atex, FDA, EC/1935



See More Videos



Download information about VerderFlex Dura Peristaltic Pumps here!





Request a quote for a VerderFlex Dura pump here!
