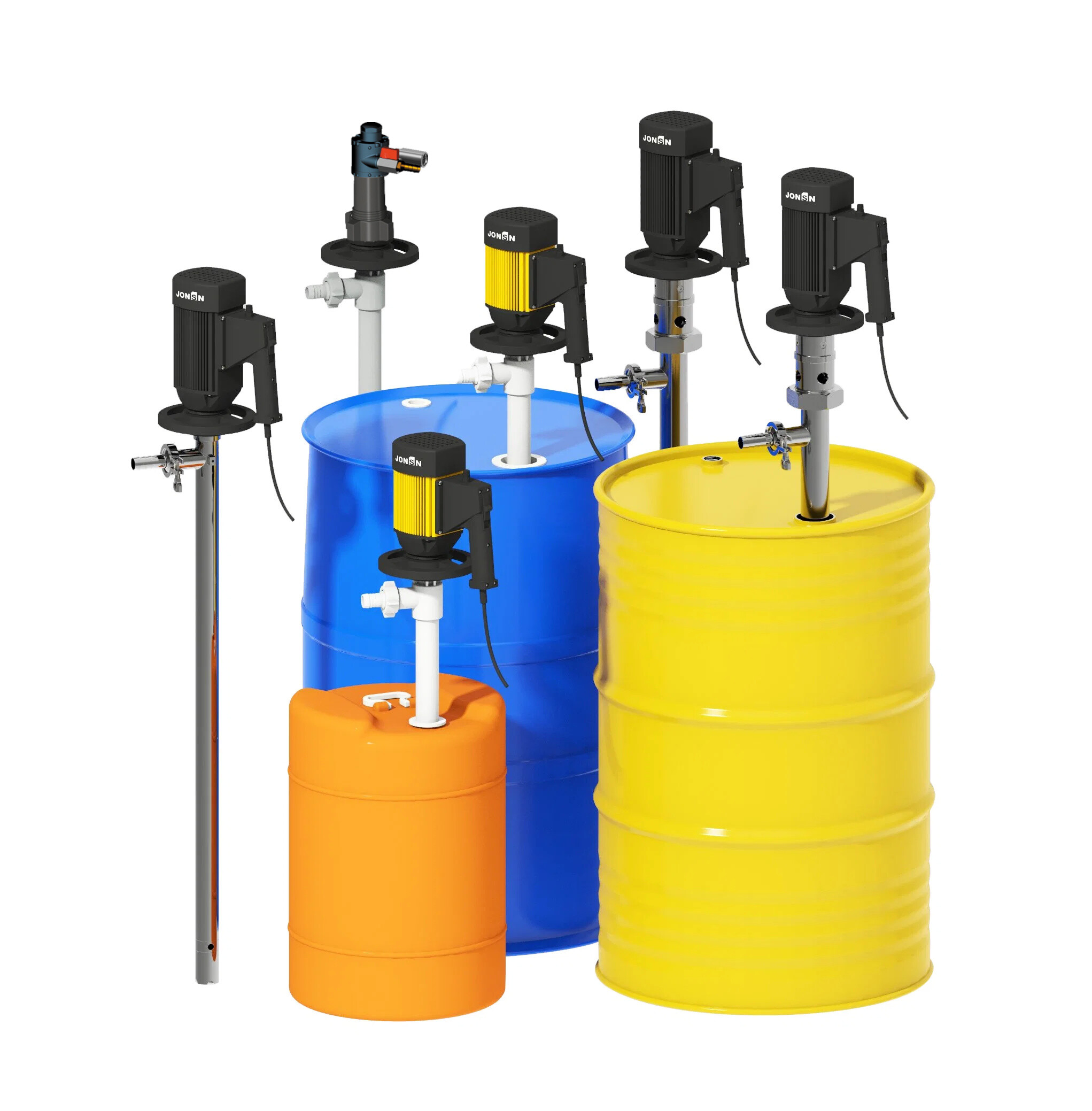

Drum Pumps for Transfer Chemicals

General

The Drum Pumps for Chemicals are designed and developed for the transfer of liquids from small bore vessels, barrels or IBC Containers and are suitable for low-medium viscosity media, such as solvents, bleaching liquids, hydrochloric acid, nitric acid, sulphuric acid and other mediaκ.

Features

• Drive: Electric motor, Battery motor or air motor.
• Tube Material: SS304, SS316, PP, PVDF
• Immersion length: 700mm, 1000mm, 1200mm
• Tube Diameter: 42mm
• max. Flow rate: 120 l/min (electric motor), 58 l/min (air motor)
• max. head: 10 m (electric motor), 5m (air motor)
• max. temperature: 49-140 ℃
• max. Viscosity: 300 cpss

Download information here !



Drum Pumps General Brochure



Request a Drum Pump here !

In order we offer the best solution please fill the below form :

Name *

First

Last

Phone *

Email *

Company

RolePlease select...Operator/EngineerManager/SupervisorPurchaserQuality Manager/ControllerIn maintenanceCEO

Medium/Media to be pumped *

Temperature T oC *

Viscosity (mPa·s), (cP)

Density (g/ml)

Discharge Conditions

Lenght Immersion Tube - Suction vessel

• 700 mm (for small drums, vessels, cans)
• 1000 mm (for drums 200 liters)
• 1200 mm (for IBC Conteiners)

Material Pump Immersion Tube

• Polypropylene PP
• Stainless Steel SS304 (ATEX)
• Stainless Steel SS316 (ATEX)
• PVDF

Drum Pump Motor Type

• Electric Motor TM800V (220V, 800W, max120 lt/min)
• Electric Motor ΑΤΕΧ BM800V (220V, 800W, max120 lt/min)
• Air Motor ΑM640 (56,5 m3/h air, 640W, max80 lt/min)
