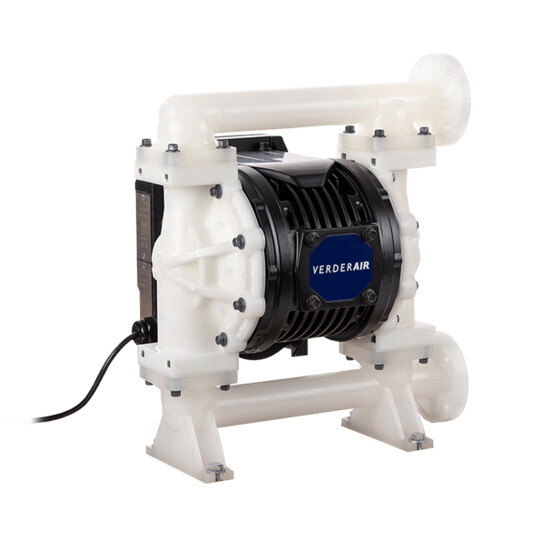

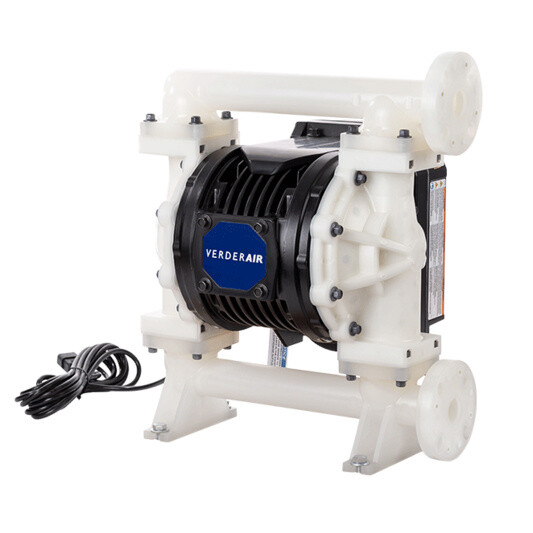

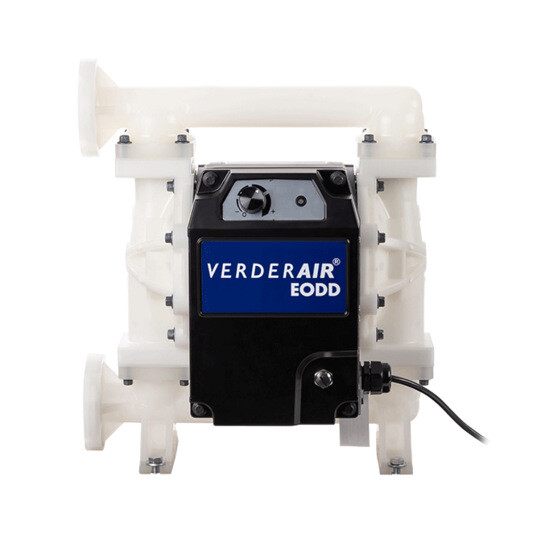

Electric Double Diaphragm Pump Plastic 114 l/min
The VA-2E25 non-metallic is an electric operated double diaphragm pump (EODD) that perfectly combines the advantages of an electric and an air operated double diaphragm pump (AODD).
Flow rate : 114 l/min.
Pressure max: 6,9 bar.
Description
Electric Double Diaphragm Pump Plastic 114 l/min
2nd Generation EODD
The VA-2E25 non-metallic is an electric operated double diaphragm pump (EODD) that perfectly combines the advantages of an electric and an air operated double diaphragm pump (AODD). With the wide range of different available materials for pump body, valve seats, valve balls and diaphragms, this pump is the ideal problem solver in a wide range of applications across many industries.
It’s smart, simple, cost-effective, clean and environmentally responsible. It’s designed to be quieter, lighter, more reliable, and easier to maintain.
Your benefits
- Energy efficient
- Low noise level
- Can stall against close discharge
- Can run dry without damage
- Dry self priming
Technical Data
| VA-2E25 non-metallic | |
| Max. flow | 114 l/min (6,8 m3/h) |
| Max. discharge pressure | 6.9 bar |
| Max. drive power | 220-240V. 10A. 1 phase. 50/60 Hz |
| Liquid connections | Center flange DIN DN25/ANSI 1” – end flange DIN DN25/ANSI 1” |
| Certificates | ATEX |
| Max. suction lift (wet) | 8.8 m wc |
| Max. suction lift (dry) | 2.4 m wc |
| Max. particle size | 3.2 mm |
| Viscosity | 10000 MPa |
| Max. temperature | 66 °C |
| Materials liquids parts | Polypropylene, Conductive Polypropylene, Kynar |
| Materials valve seats | Acetal, Aluminium, Buna-N, Geolast, Polypropylene, Hytrel, Santoprene, Stainless Steel, Viton |
| Materials valve balls | Acetal, Buna-N, Geolast, Hytrel, Santoprene, Neoprene, Neoprene weighted, Stainless Steel, Viton, PTFE |
| Materials diaphragms | Buna-N, Geolast, Hytrel, Neoprene (overmolded), Santoprene, PTFE (2 piece), PTFE (Overmolded), Viton |
| Material drive section | Aluminium, Stainless Steel |
Downloads
Downloads
 |
Technical Data Sheet VA-2E25 |
|
Verderair General Brochure EODD 2nd Generation |
|
Verderair General Brochure |
|
Verderair_EODD-Gen2_INT_EN_Manual.pdf |
