Description

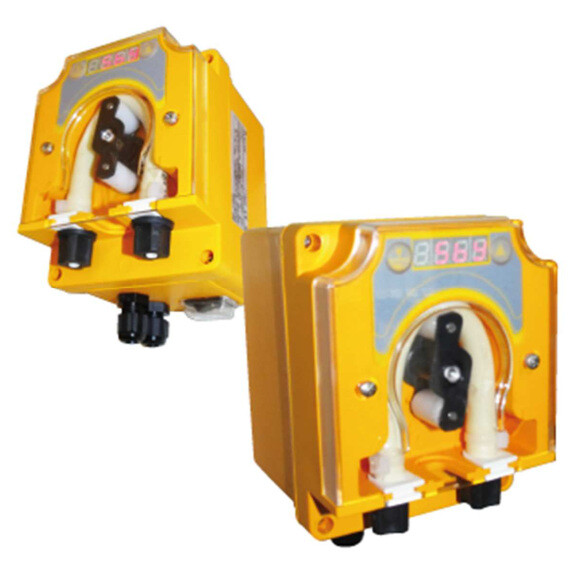

Digital Peristaltic Pump with Conductivity for dishwashers. Adjust dosing detergent via washing solution conductivity.

Conductivity probe included.

Technicals Data

• Flow rate:
  • 0,54 ÷ 7,2 l/h
  • 0,72 ÷ 10,8 l/h
• Pressure 1 bar.
• Santoprene Peristaltic hose .
• Polypropylene body for maximum resistant to chemical aggression.
• Proportional dosing (speed 10÷100%) to the measured conductivity in the basin (range 0,2÷101 mS)
• Proportional band 1 mS
• OFA alarm :
  • 1° level OFA time 1÷999 sec. with display visualization
  • 2° level with motor stop with display visualization and acoustic signal for activation
  • 3° level OFA time = 0 (disabled)
• Compensation of the measure through manual setting of the temperature.
• Functional stop with visualization of the actual measurement in basin.
• Parameters setting menu protected by password (0÷999).
• Control of the motor and of the initial start up with alarm visualization in case of overload on the motor and management of the starting attempts.
• Power cable and conductivity probe divided.
• 3 way switch for stand by and manual priming completely protected.
• Level switch input.
• 4 digit with alarm and working state visualization.
• Bubble button for PROG/DOWN and UP.
• The programming allows to the set the conductivity value responding to the desired detergent concentration.
• The pump is able to recognize the empty machine.
• Buzzer for alarms, motorstop or product level.
• Standard power supply 220-240 Vac 50-60 Ηz (on request 24 Vac/dc).
• Protection degree ΙΡ65.
• Quick installation on wall.
• Light weight and small.
• Hose replaceable without requiring special tools.
• Temperature: 5 ÷ 45 °C.
• Full chemical compatibility.
• Dimension 112x90x90 mm.
• Weight 0,6 kg.

Included

• Conductivity probe
• Foot filter PVC.
• Injection valve PVC.
• 2 m PE delivery tube (4×6 mm).
• 2 m PVC suction tube (4×6 mm).
• Wall fixing bracket.

Εconomical and reliable solution for dosing your detergents and rinse-aids.
