Air Diaphragm Pump FDA 61 l/min
in stock
The Verderair HI-CLEAN VA-H20 FD is a compact, air operated double diaphragm (AODD) pump for food and hygienic industries suitable for fluids include viscous pasta sauces and pastes, milk and dairy, beers.
Description
Air Diaphragm Pump FDA 61 l/min
The Verderair HI-CLEAN VA-H20 FD is a compact, air operated double diaphragm (AODD) pump for food and hygienic industries. Suitable for fluids include viscous pasta sauces and pastes, milk and dairy, beers, wines and juices as well as personal care products such as creams, gels and shampoo..

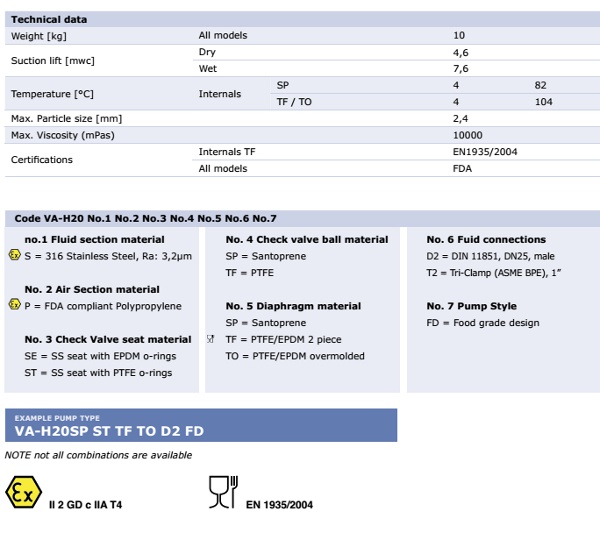

Technical Characteristics
| VA H20 FD | |

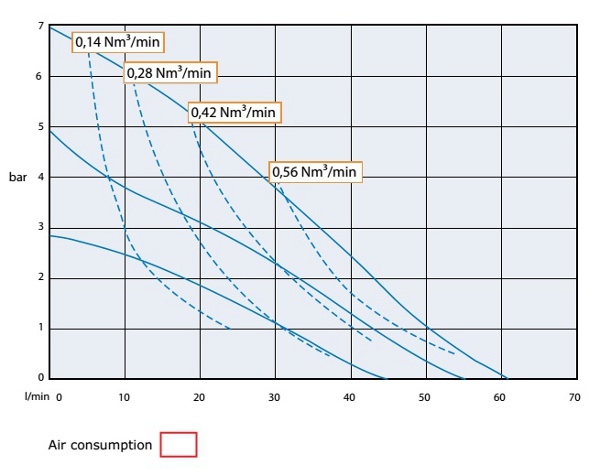

| Max. flow | 61 l/min (3,7 m3/h) |
| Max. discharge pressure | 7 bar |
| Max. particle size | 2.4 mm |
| Viscosity | 5000 cP |
| Certificates | EN 1935. FDA. ATEX |

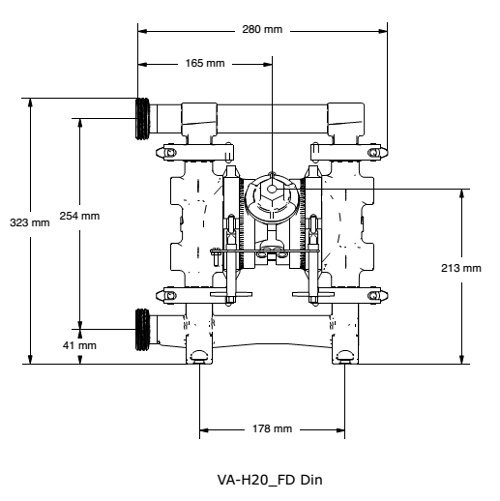

| Connections | Tri clamp and DIN |
| Air conn. | 1/4″ BSP/NPT |
| Liquid conn. | DIN11851 DN25 |
| Liquid conn. | 1 Triclamp (ASME(BPE)) |
| Maximum suction lift (dry) | 4.6 m wc |
| Maximum suction lift (wet) | 7.6 m wc |
| Max. temperature | 104 °C |
| Materials liquids parts | SS316 – Ra<3,2µm |
| Materials valves seats | SS with EPDM o-rings, SS with PTFE o-rings |
| Materials valve balls | Santoprene, PTFE |
| Materials diaphragms | PTFE (2 piece), PTFE (overmolded), Santoprene |
| Material center section | Polypropylene |
Downloads
Downloads
 |
Technical Data Sheet VA H20 FD |
|
Verderair General Brochure Hi-Clean |
|
Verderair General Brochure |
|
Verderair_VAH20FD_INT_English_Repair ＆ Operations.pdf |
