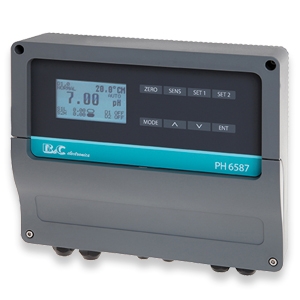

Wall Mounted pH/ORP Controller & Transmitter
The PH 6587 Wall Mounted pH/ORP Controller & Transmitter is designed for continuous water quality monitoring and control in industrial and environmental applications. It supports pH, ORP and temperature measurement, dual analog output, programmable alarms, PID regulation and automatic or manual cleaning cycles.
Description
Wall Mounted pH/ORP Controller & Transmitter
The Wall Mounted pH/ORP Controller & Transmitter is a reliable solution for continuous monitoring and control of water quality in industrial and environmental applications.
The device is compatible with pH sensors (glass or antimony type) and ORP sensors, while also supporting Pt100 or Pt1000 temperature sensors for automatic temperature compensation.
When the RTD is connected, the instrument provides temperature indication.
|
The instrument provides the following functions:
– Measurement display within the range defined by the installed sensor |
|
Applications
- Aquaculture
- Chemical industry
- Drinking water
- Electrolytic processes
- Fertigation
- Paper industry
- Pharmaceutical industry
- Printing industry
- Swimming pools
- Textile industry
- Groundwater
- Water treatment
Technical Data
| PH / ORP Instrument PH 6587 | |
| Inputs | pH electrodes (glass or antimony) ORP electrodes Pt100 / Pt1000 |
| Zero | ±2 pH, ±100 mV, ±5 °C, ±9 °F |
| Sensitivity | 80 ÷ 110 % (70 ÷ 140 % antimony) |
| Resolution | 0.01 pH, 1 mV, 0.1 °C/°F |
| Accuracy | 0.2 % |
| Repeatability | 0.1 % |
| Non-linearity | 0.1 % |
| Dual filter software | 0.4 ÷ 50.0 seconds for small and large variations |
| Dual analog output | 0-20 mA / 4-20 mA, Rmax 600 Ω |
| Dual set points HI/LO | ON/OFF – PID – PFM – PWM, SPST relays |
| Hysteresis | 0 ÷ 1.40 pH, 0 ÷ 200 mV |
| Delay | 0 ÷ 100.0 seconds |
| Alarm | SPDT relay with delay 0 ÷ 100.0 seconds |
| Cleaning function | off / autoclean / manual, relay SPDT repetition time 0.1 ÷ 100.0 hours cleaning time 1.0 ÷ 60.0 seconds holding time 0.0 ÷ 20.0 minutes |
| SPST and SPDT relay contacts | 220V – 5 A resistive load |
| Operating temperature | -10 ÷ 60 °C |
| Humidity | 95% without condensation |
| Power supply | 85 ÷ 264Vac – 50/60 Hz 9 ÷ 36Vdc, 12 ÷ 24Vac (option 091.42x) |
| Terminal blocks | removable |
| Weight | 1360 g |
| Enclosure | ABS, IP65 protection |
| Dimensions | 256x230x89 mm |
| EMC/RFI conformity | EN 61326 |
| Registered design | 002564666-002 |
The technical specifications could be changed without notice.
Package Contents
- 2 mounting clips for panel installation
- User manual
