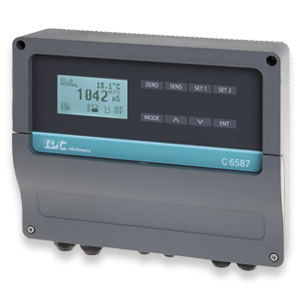

Wall Mounted Conductivity/Resistivity/TDS Controller C6587

in stock
SKU: C6587

The Wall Mounted Conductivity / Resistivity / TDS Controller C6587 is designed for continuous water quality monitoring and control in industrial and environmental applications. It supports conductivity, resistivity and TDS measurement, Pt100/Pt1000 temperature compensation, dual analog outputs, alarms, PID control and automatic or manual cleaning cycles.

Add to Quote

Description

Wall Mounted Conductivity/Resistivity/TDS Controller





The wall mounted conductivity/resistivity/TDS controller is a reliable solution for continuous measurement and control of water quality in industrial and environmental applications.



The device can be configured for conductivity or TDS control during installation, while resistivity indication can also be enabled from the configuration menu.



It supports manual and automatic temperature compensation via Pt100 or Pt1000 sensor. When the RTD is connected, the instrument also provides temperature indication.







The instrument provides the following functions:

– Measurement display within the range defined by the installed sensor
– Automatic measurement control function
– Alarm from minimum/maximum measurement values, excessive relay activation and presence of digital inputs
– Programmable dual analog output for data recording and acquisition or PID regulation
– Hold / alarm function activated via two external volt-free contacts
– Activation of automatic or manual sensor cleaning cycles









Applications

  • Primary waters
  • Food industry
  • Chemical industry
  • Graphic arts industry
  • Irrigation / Agriculture
  • Water treatment





Technical Data



Conductivity / Resistivity / TDS Instrument C 6587

Display

Multi-line graphic display

Inputs

 2-electrode conductivity cells
4-electrode conductivity cells
Pt100 or Pt1000

Logic inputs

2 inputs for hold / alarm function

Measurement ranges

 0 ÷ 200.0 nS to 0 ÷ 2000 mS
0 ÷ 100.0 ppb to 0 ÷ 1000 ppt
0 ÷ 99.999 Ohm to 0 ÷ 999.99 MOhm
indirect measurements according to selected factor or table
-10.0 ÷ 110.0 °C / 14.0 ÷ 230.0 °F

Set point

2 set points

Alarm

selectable min/max values over the full selected range

Analog outputs

 2 outputs 0-20 mA / 4-20 mA
for PID or measurement transmission (main value or temperature)

Autoclean function

Yes

Configuration

two configuration levels with operator-selectable access codes

Ambient temperature

0 / 50 °C

Power supply

85 / 264 V – 50/60 Hz

Protection rating

ABS, IP66

Dimensions

256 x 230 x 89 mm

Registered design

002564666-002

Optional versions

 091.428 – Power supply 9/36 Vdc – 24 Vac
091.1382 – 4-electrode cell input





Package Contents

  • Instruction manual
