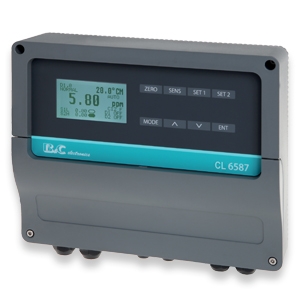

Wall Mounted Cl2/ClO2/O3 Analyzer

in stock
SKU: CL6587

The Cl2 / ClO2 / O3 wall mounted analyzer is designed for continuous monitoring and control of water disinfection processes. It supports amperometric sensors, temperature compensation, 4-20 mA outputs, alarms and PID regulation.

Add to Quote

Description

Wall Mounted Cl2/ClO2/O3 Analyzer





The Cl2 (chlorine), ClO2 (chlorine dioxide) and O3 (ozone) analyzer is a reliable solution for continuous measurement and control of disinfectant parameters in water treatment and industrial process applications.



The device is compatible with amperometric sensors (polarographic or potentiostatic) with 2 or 3 electrodes, ensuring high accuracy and measurement stability.



It also supports Pt100 or Pt1000 temperature sensors for automatic temperature compensation and real-time temperature indication.







The instrument provides the following functions:



  • Measurement indication within the range defined by the installed sensor
  • Automatic measurement control function
  • Alarm for minimum/maximum measurement values, excessive relay activation and presence of logic inputs
  • Programmable dual analog output for data logging, measurement acquisition or PID control
  • Hold / alarm function activated via two external voltage-free contacts
  • Automatic or manual sensor cleaning cycles









Applications

  • Drinking Water
  • Swimming pools
  • Water treatment





Technical Data





Wall Mounted Cl2 / ClO2 / O3 Analyzer
Inputs potentiostatic sensors
polarographic membrane sensors
Pt100 / Pt1000
Zero ±20 %, ±5.0 °C, ±9 °F
Sensitivity 12.5 ÷ 250 %
Resolution 1 digit
Accuracy 0.2 %
Repeatability 0.1 %
Non-linearity 0.1 %
Dual filter software 0.4 ÷ 50.0 seconds for small and large variations
Dual analog output 0-20 mA / 4-20 mA, Rmax 600 Ω
Dual set points HI/LO ON/OFF – PID – PFM – PWM, SPST relays
Hysteresis 0 ÷ 10 %
Delay 0 ÷ 100.0 seconds
Alarm SPDT relay with delay 0 ÷ 100.0 seconds
Cleaning function off / autoclean / manual, relay SPDT
repetition time: 0.1 ÷ 100.0 hours
cleaning time: 1.0 ÷ 60.0 seconds
holding time: 0.0 ÷ 20.0 minutes
Relay contacts 220V – 5 A resistive load
Operating temperature -10 ÷ 60 °C
Humidity 95% without condensation
Power supply 85 ÷ 264Vac – 50/60 Hz
9 ÷ 36Vdc, 12 ÷ 24Vac (option 091.42x)
Terminal blocks removable
Weight 1360 g
Enclosure ABS, IP65 protection
Dimensions 256x230x89 mm
EMC/RFI conformity EN 61326
Registered design 002564666-002

Technical specifications may change without notice.





Package Contents

  • Instruction manual
