Vertical Agitator ACT Series
The Vertical Agitator ACT Series is conceived to ensure optimal performance in the most diverse applications within waste water as well as other industrial processes. The 3-blade high-efficiency impeller has a high hydrodynamic profile, ensuring high flow rate and off-bottom solid suspension, resulting in an overall improvement of the mixing process even when dealing with high solids concentration and big volumes.
Description
Vertical Agitator ACT Series
The Vertical Agitator ACT Series is conceived to ensure optimal performance in the most diverse applications within waste water as well as other industrial processes.
3PM-0134 Hurricane 3-blade high-efficiency impeller has a high hydrodynamic profile, ensuring high flow rate and off-bottom solid suspension, resulting in an overall improvement of the mixing process even when dealing with high solids concentration and big volumes.
This hydrofoil profiled impeller can guarantee an optimal mixing with very low absorbed power. That helps avoiding swirl or vortex, making ACT agitator perfect for flash mixing, sludge equalization and denitrification.

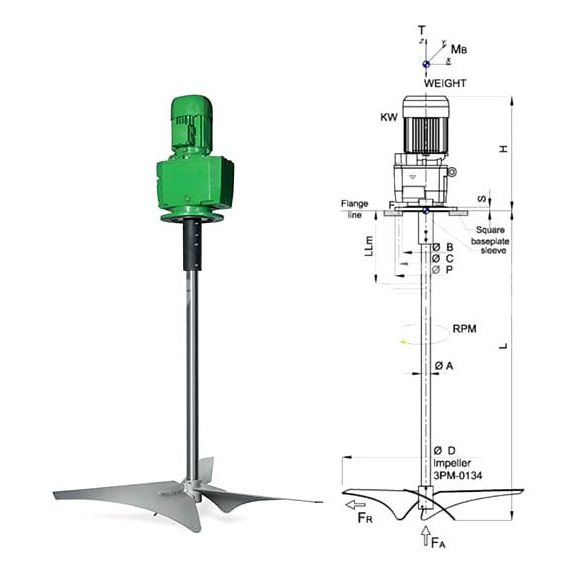

Geometry of the Propeller
- Better Mixing
- Less Power Required
|
Models
|
Motor Power (KW)
|
RPM
|
Ø mm
|
Maximum Shaft Length (mm)
|
| ACT.30151 | 3 | 70 | 1500 | 3200 |
| ACT.30131 | 3 | 85 | 1300 | 3500 |
| ACT.40151 | 4 | 85 | 1500 | 2600 |
| ACT.22110 | 2.2 | 100 | 1100 | 3000 |
| ACT.40131 | 4 | 100 | 1300 | 3000 |
| ACT.11092 | 1.1 | 110 | 900 | 2500 |
| ACT.11091 | 1.1 | 115 | 900 | 1600 |
| ACT.22111 | 2.2 | 120 | 1100 | 2600 |
| ACT.15092 | 1.5 | 125 | 900 | 2500 |
| ACT.15091 | 1.5 | 130 | 900 | 2000 |
