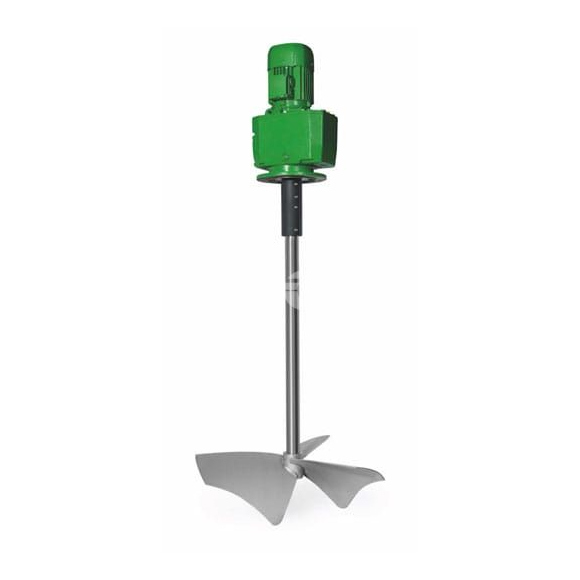

Vertical Agitator ACC Series
The Vertical Agitator ACC Series is suitable for an extensive range of application within wastewater treatment as well as other industries. Thanks to the particular design of 3PM-1084 Excellent 3-blade high-efficiency impeller, it is able to create high flow rate while ensuring energy efficiency, resulting in smooth mixing with low installed power.
Description
Vertical Agitator ACC Series
The Vertical Agitator ACC Series is suitable for an extensive range of application within wastewater treatment as well as other industries. Thanks to the particular design of 3PM-1084 Excellent 3-blade high-efficiency impeller, it is able to create high flow rate while ensuring energy efficiency, resulting in smooth mixing with low installed power.
This agitator produces a pumping effect, ensuring the fluid complete recirculation within the tank. This allows to keep the medium well homogenized in order to prevent product sedimentation.
That is why ACC agitator is perfect when dealing with polymer preparation and storage, lime milk preparation and storage, sludge suspension, as flow maker or for heavy slurry homogenisation.

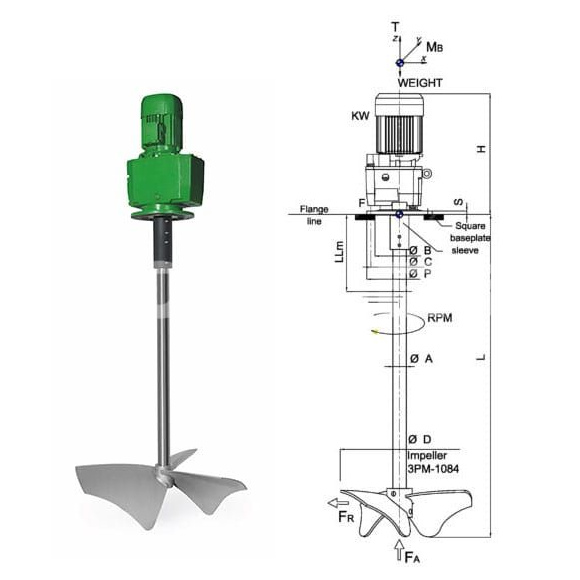

Geometry of the Propeller
- Better Mixing
- Less Power Required
|
Models
|
Motor Power (KW)
|
RPM
|
Ø mm
|
Maximum Shaft Length (mm)
|
| ACC.03061 | 0.37 | 50 | 600 | 3000 |
| ACC.03051 | 0.37 | 60 | 500 | 2500 |
| ACC.01020 | 0.18 | 70 | 200 | 1200 |
| ACC.01031 | 0.18 | 70 | 300 | 1200 |
| ACC.03041 | 0.37 | 70 | 400 | 2500 |
| ACC.22081 | 2.2 | 80 | 800 | 2500 |
| ACC.11061 | 1.1 | 90 | 600 | 1900 |
| ACC.15071 | 1.5 | 100 | 700 | 2000 |
| ACC.15072 | 1.5 | 100 | 700 | 2700 |
| ACC.30081 | 3 | 100 | 800 | 3000 |
| ACC.11062 | 1.1 | 120 | 600 | 2150 |
| ACC.07051 | 0.75 | 125 | 500 | 1700 |
| ACC.07041 | 0.75 | 170 | 400 | 1700 |
| ACC.03031 | 0.37 | 200 | 300 | 1500 |
| ACC.03033 | 0.37 | 200 | 350 | 1600 |
| ACC.03021 | 0.37 | 220 | 200 | 1500 |
| ACC.03022 | 0.37 | 220 | 250 | 1400 |
| ACC.03032 | 0.37 | 230 | 300 | 1400 |
| ACC.01021 | 0.18 | 250 | 200 | 700 |
| ACC.05021 | 0.55 | 290 | 250 | 1100 |
| ACC.02021 | 0.25 | 350 | 200 | 1000 |
