Description

Verdermix VNF Industrial Mixer

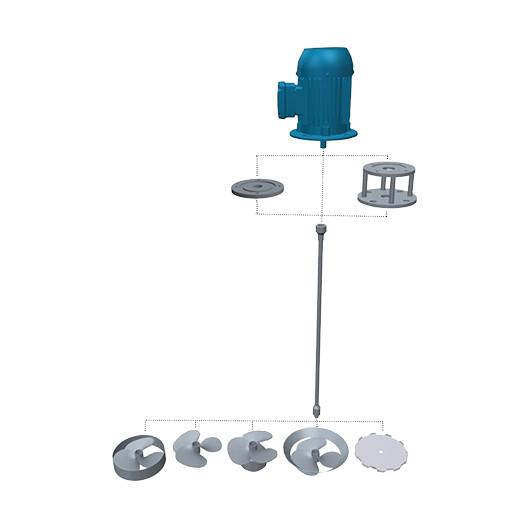

The Verdermix VNF Industrial Mixer is an economical and reliable solution for basic mixing applications. It is an entry-level model equipped with an IEC standard motor that complies with local motor regulations.      These mixers are ideal for efficient and consistent mixing of low to high viscosity liquids, with or without solid particles, in small or large tanks.     The series includes several models with different power ratings, shaft dimensions, and propeller diameters, allowing the right selection according to process requirements. Its robust construction, stainless steel shaft, and PVDF propeller make it a practical and durable choice for industrial environments.

Applications

VNF mixers are widely used in industrial processes such as:

• • Wastewater treatment (neutralization, flocculation, coagulation)
  • Chemical industry
  • Food & beverage industry
  • Cosmetics
  • Ink and varnish production
  • Mixing solids into liquids
  • Homogenization of solutions

Typical fluids:

• • Wastewater
  • Liquid-solid pastes
  • Dyes & pigments
  • Printing inks
  • Chemical additives

Features

General

Shaft speed: 750 – 3000 rpm
Shaft length: up to 1700 mm
Materials: stainless steel (in contact with the liquid)
Propeller types: PS, L, PSL, Z, RB

Motor

IEC standard motor
Power supply: 230/400V – 50Hz
Efficiency class: IE1 – IE3 (depending on model)
Protection: Rain cover

Shaft

Length: ~800 mm (standard models)
Diameter: 15 – 20 mm
Material: Stainless steel

Propeller

Diameter: 125 – 175 mm
Material: PVDF
Types: Standard / Foldable

Technical Specifications
