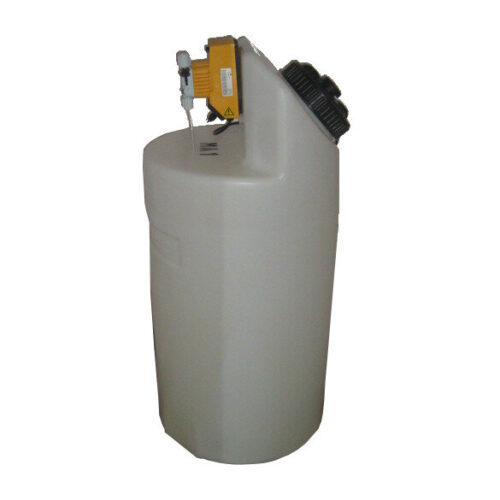

Special Storage Tank with pump support 135 lt
Special design storage tank with support for dosing pump installation. Suitable for dosage any chemical solution.
Volume : 135 lt
Dimensions : Ø 470mm x h 1010mm.
Special design storage tank with support for dosing pump installation. Totally anti-U.V – FDA certified monobloc (without any welding) moulded by rotational system. Volume 135 lt.
The tank is designed for normal atmospheric pressure and it can not to be used under pressure. The operating temperature range is between -20°C to +60°C (also if, with certain types of polyethylene, it can reach a temperature of -40° C). With regard to PVC fittings the maximum operating temperature is +45°C with peaks of short duration of +60°C. If you work at higher temperatures is necessary must choose other types of connections such as PP, steel and brass nickel.
Ανάλογα με το είδος του χημικού που πρόκειται να δοσομετρηθεί:
|STANDARD||: Model for medium-high density acids|
|MA/1||: Even stronger model for heavy products.|
|MA/2||: Even stronger model for heavy products and extreme temperatures.|
In each tank can be placed right equipment depending on usage and operating needs such as:
- Screw Cover with vent
- Standard side wall stub pipe
- Level gauges
- Minimum – Maximum switches
- Hydraulic guard
