Description

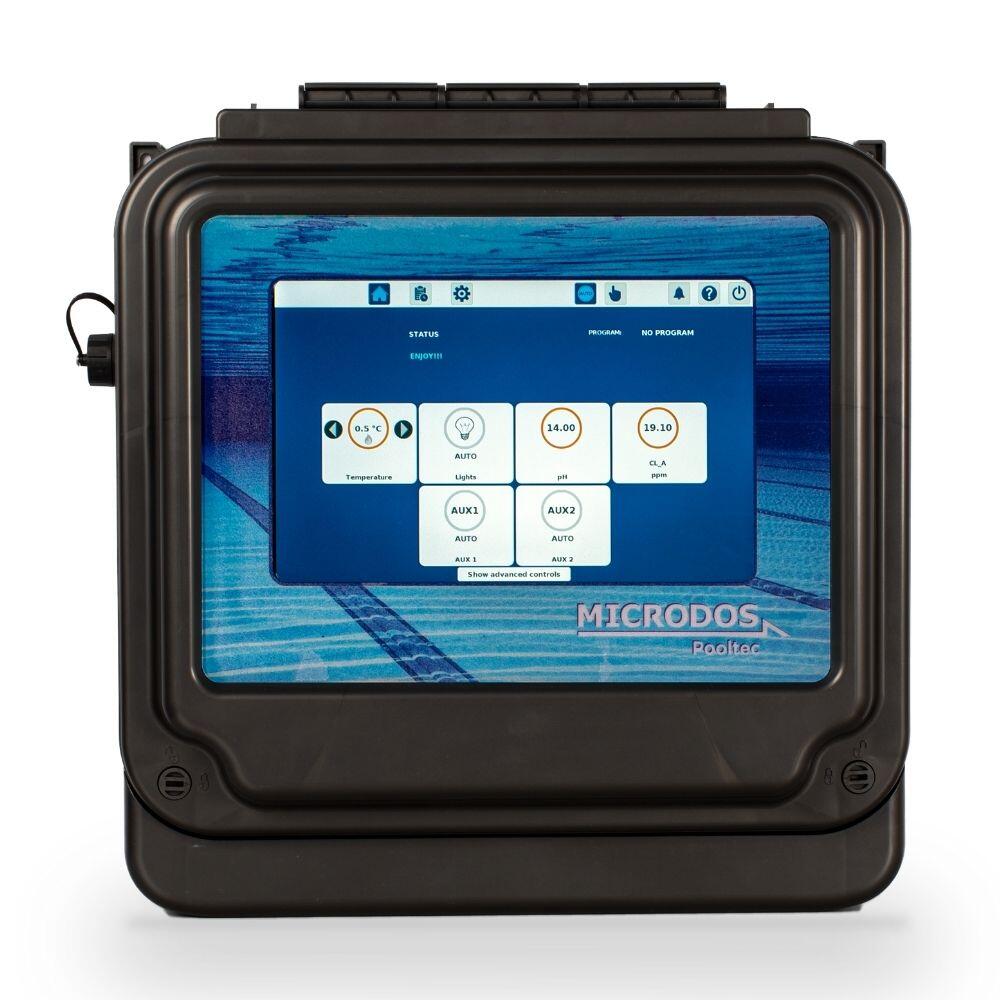

Multifunction Instrument for Swimming Pool Control

POOLTEC is a new and innovative fully digital multifunction instrument IoT for the control of pH, Redox, Chlorine,  Temperature, Lighting and Recirculation pump in small and large swimming pools. Ready to operate and easy to install. Compact in IP65 box with large display touchscreen 10’’ for easy configuration. Suitable for wall or panel mounting

Wifi/Ethernet connection or via the Android/iOS app it is possible to remotely control all the parameters and alarms of the pool.

Automatic Operating

1. Μeasurement and control of pH
2. Μeasurementr and control of Redox
3. Mmeasurement and control of Free Chlorine
4. Μeasurement and control of water Temperature
5. ON/OFF for pool recirculation pump
6. ON/OFF for pool lighting

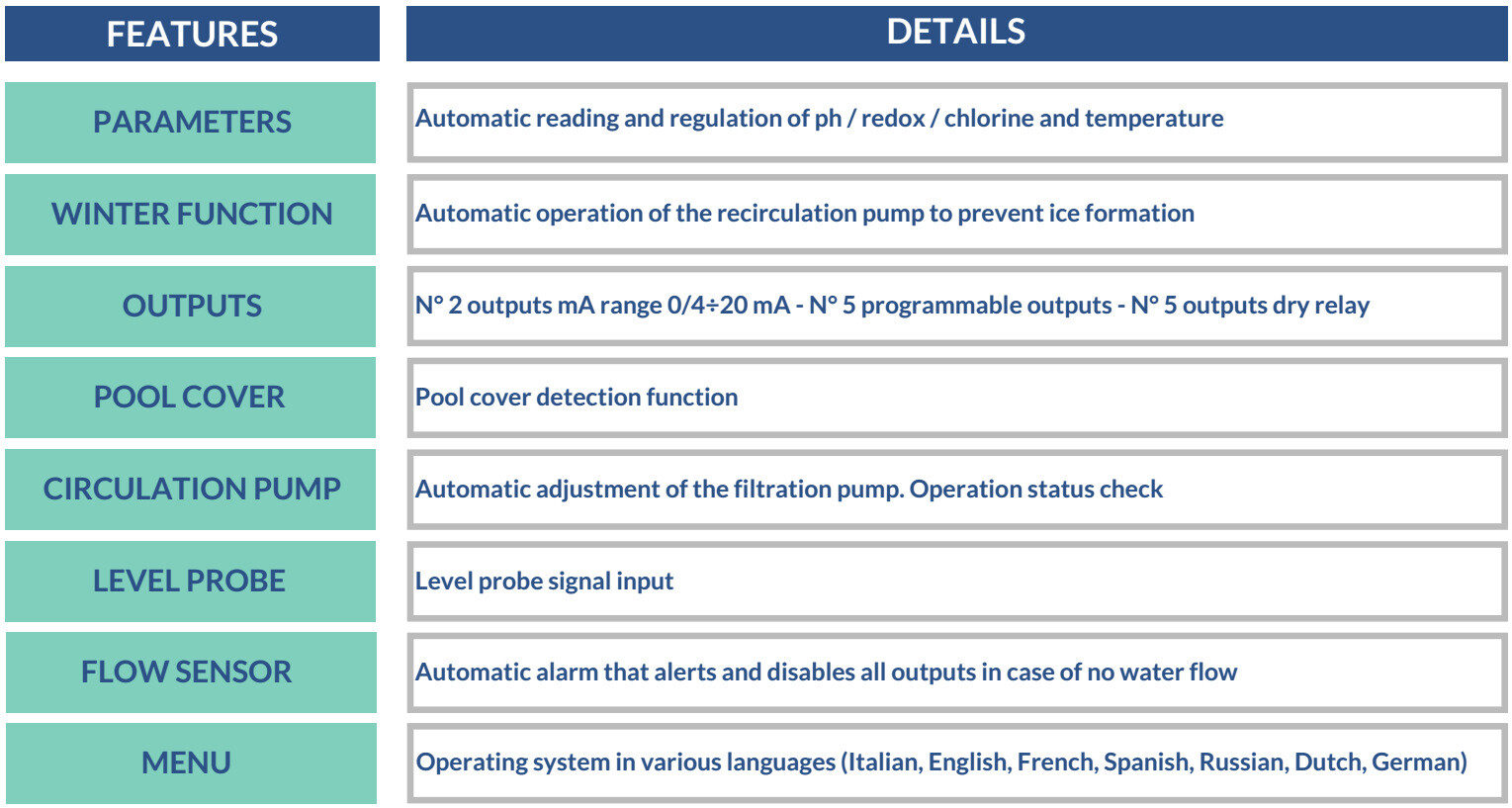

Technical Data

• IoT multifunction instrument for the control of pH, redox, chlorine, temperature.
• Automatic operating: automatic adjustment of pH, redox, chlorine, water temperature, recirculation pump and all programmed outputs.
• Manual operating: manual adjustment of all functions.
• Winter function (NOFROST): automatic activation of the recirculation pump to prevent the formation of ice.
• Instant display of the pH value (0÷14 pH), Redox (0÷1000 mV), chlorine (0÷20 ppm), temperature (°C/°F), detected through the various configurable probes.
• mA outputs: up to 2 mA outputs fully programmable on the 0/4÷20 mA range useful for managing mA pumps.
• Programmable powered outputs: a total of 5 programmable powered outputs.
• Programmable dry relay outputs: 5 programmable relay outputs (voltage free contact).
• Alarms: greater safety thanks to numerous automatic alarms on all controlled parameters.
• Alarm email: automatic sending of emails to the desired addresses in case of an alarm.
• 3 protected programming levels (password): user (free) for basic settings, expert (password) to access more complex settings and installer (changeable password) to access device configurations.
• Recirculation pump management / control: automatic adjustment of the filtration pump (management of filtering hours based on the water temperature or based on pre-set programs). Operating status check.
• Pool cover detection function.
• Lighting management: programmable switching ON/OFF for pool lighting.
• History of the measurements of the previous months
• Geo localization: useful function for the installer to locate the customer more quickly.
• Multi-language menu: operating system available in various languages (Italian, English, Spanish, French, German, Dutch, Russian).
• Quick installation user manual: quick installation guide. Complete user manual available online.
• Help on device: quick explanation of each function within the menu
• Flow sensor: automatic alarm that alerts and disables all outlets in case of no water flow in the pipes.
• Level probe predisposition: automatic alarm that warns in case of exhaustion of the chemical product in the tank.
• Predisposition for anti-limescale system: ecological anti-limescale system using magnetic fields.
• Wifi / ethernet connection: communication with the server to manage information on the pooltec-pro platform.
• Web control: server for managing records, communications, and updates.
• Android / iOS app: via the Android / iOS app it is possible to remotely control all the parameters and alarms of the pool.
• Display touchscreen 10’’.
• Easy access to the connection compartment: easy opening with practical locking system.
• Power Supply 100÷240 Vac 50 Hz.
• Power cable with Schuko plug.
• Box in ABS: massima compatibilità con i comuni prodotti chimici.
• Protezione IP 65
• 100 % Made in Italy
• In compliance with CE regulations

Specifications can change without notice

Configuration
