LDC Series Leak Detection Cable
The LDC Series leak detection cable provides continuous leak monitoring along its entire length, ensuring fast and reliable detection in tanks, pipelines, and industrial environments.
Description
LDC Series Leak Detection Cable
Stay Ahead of Leaks, Protect What Matters
The LDC Series Continuous Leak Detection Cable provides an advanced solution for continuous leak monitoring in industrial facilities, data centers and other critical equipment areas.

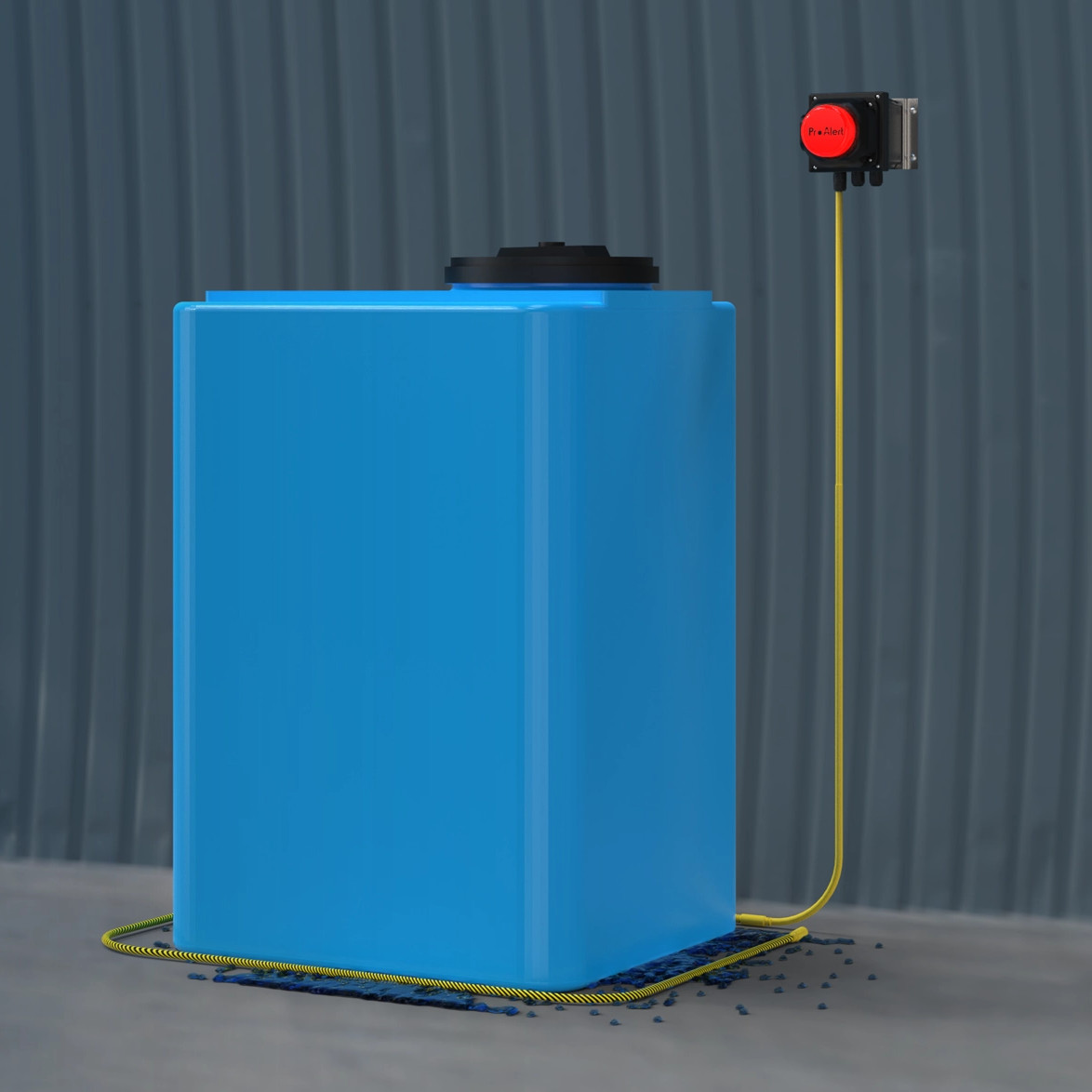

Unlike a single point sensor, the sensing cable provides continuous monitoring along its entire length, enabling rapid leak detection across extended areas such as piping systems, floors, secondary containment, tanks and areas beneath critical equipment.

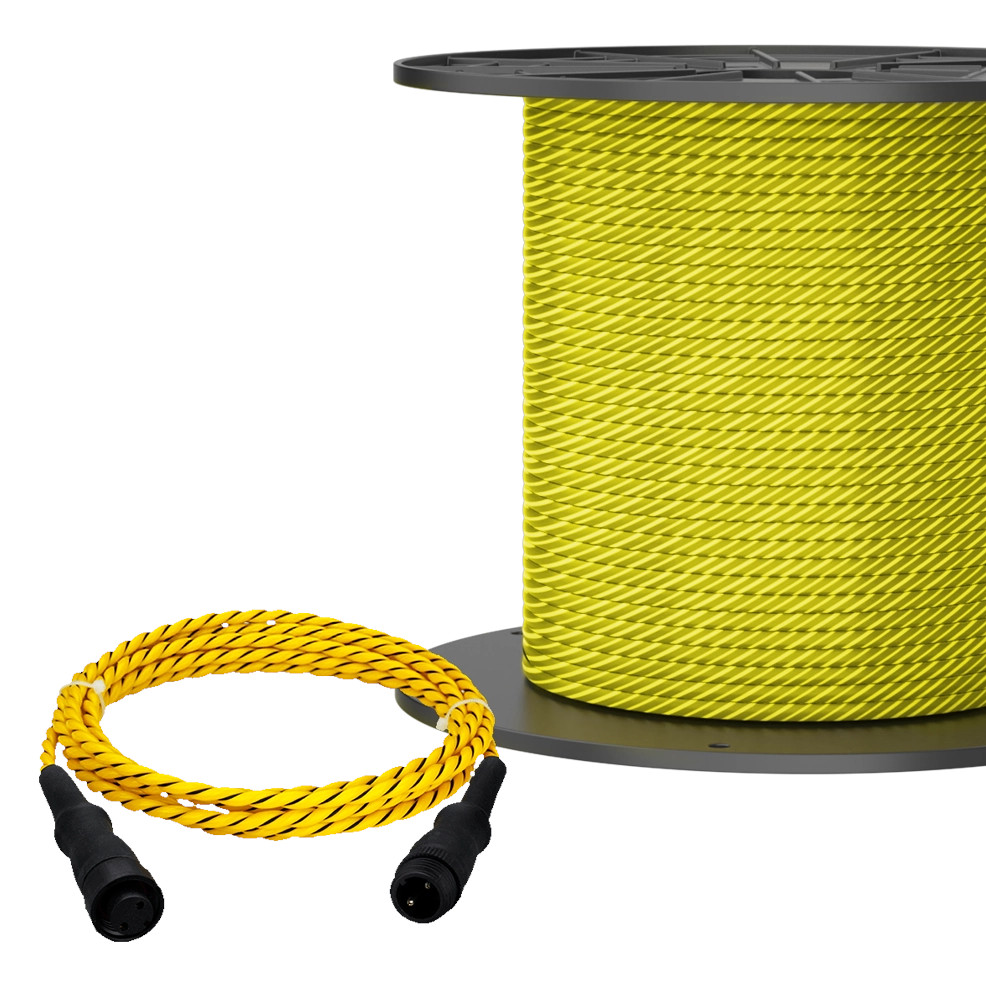

Its self-wicking hydrophobic non-conductive PE helical construction is designed to reduce inherent issues caused by high humidity, dirt, dust and contact with metal surfaces that may otherwise contribute to spurious false alarms.
Individual conductive elements are protected by corrosion-resistant polyethylene, while the sensing cable has no exposed metal on its outer surface. High tensile properties and flexibility support straight runs, loops and custom installation layouts.
Through a compatible Leak Detection Controller or Module, the system can be integrated with monitoring platforms such as BMS and SCADA. Dedicated 4-core distance-locating versions can also determine the position of a leak along the sensing cable when used with the appropriate compatible controller/module.
|
|
Guard Your Data,
|
|
|
||
|
Smart Detection,
|
![]() |
Applications
|
Technical Specifications
| Specification | LDC Series |
| Type | Continuous Leak Detection Cable |
| Materials | Polyethylene (PE) / Copper |
| Design | Self-wicking hydrophobic PE helical construction |
| Cable diameter | 6 mm |
| Exposed metal | None |
| Detection | Continuous along the sensing cable length |
| Operating temperature | -20 to +80°C |
| Available lengths | 1 to 100 m / customizable lengths |
| Mechanical strength | High Tensile Strength |
| Distance location | LDC-P / LDC-PC with compatible controller/module |
| Integration | Compatible Leak Detection Controller / Module to BMS / SCADA / automation system |
LDC Series Versions
| Model | Type | Main Function |
| LDC-G | 2-Core General Purpose Leak Detection Cable | General leak notification |
| LDC-P | 4-Core Leak Distance Locating Cable | Distance locating with compatible system |
| LDC-PC | 4-Core Corrosive Media Leak Distance Locating Cable | Acid / alkali resistant version with distance locating |
The appropriate LDC version must be selected according to the liquid being monitored, the required locating function and the compatible controller/module used in the leak detection system.
IMPORTANT
The LDC sensing cable is not a complete alarm or communication system by itself. A suitable compatible Leak Detection Controller or Module is required for alarm activation, relay outputs, BMS / SCADA communication and other monitoring functions.
Leak distance locating is not available on every LDC version. LDC-P and LDC-PC are 4-core distance-locating cables and require an appropriate compatible system to calculate the position of a leak.
Cable selection must also take into account the liquid being detected and the chemical compatibility requirements of the installation.
![]()
