LD Series Leak Detection Sensors
The LD Series leak detection sensor provides reliable liquid leak monitoring for tanks, piping, and industrial systems, ensuring early warning and protection against chemical leaks.
Description
LD Series Leak Detection Sensors
Detect Leaks Instantly, Act with Precision

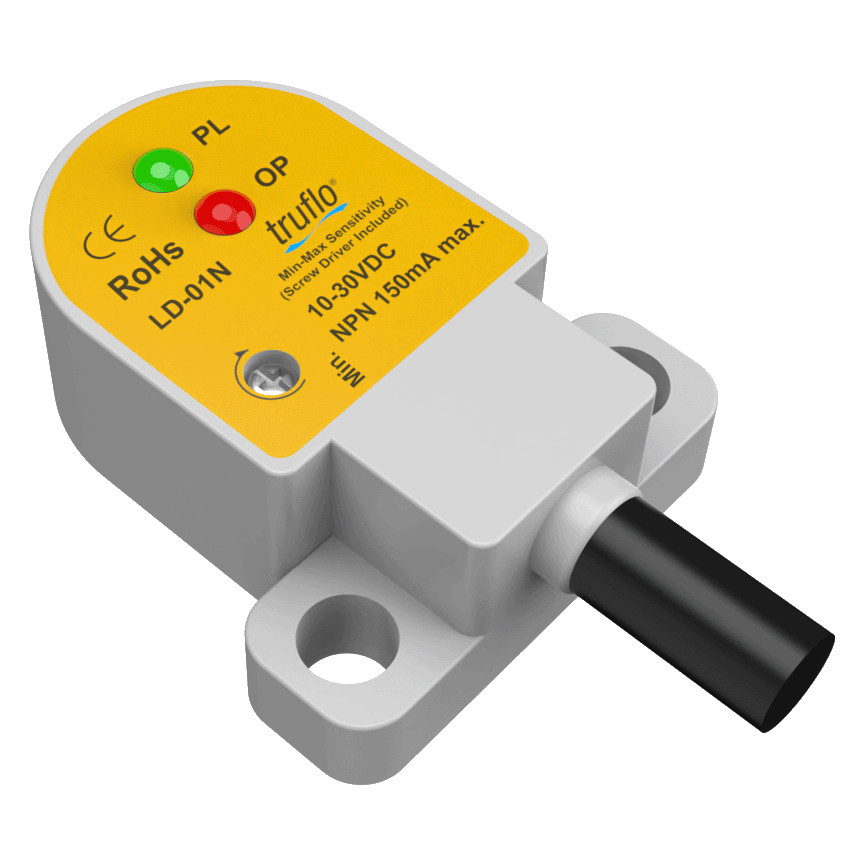

The LD Series Leak Detection Sensors are compact capacitive fail-safe sensors designed for early detection of electrically conductive and corrosive liquids in demanding industrial and chemical applications.

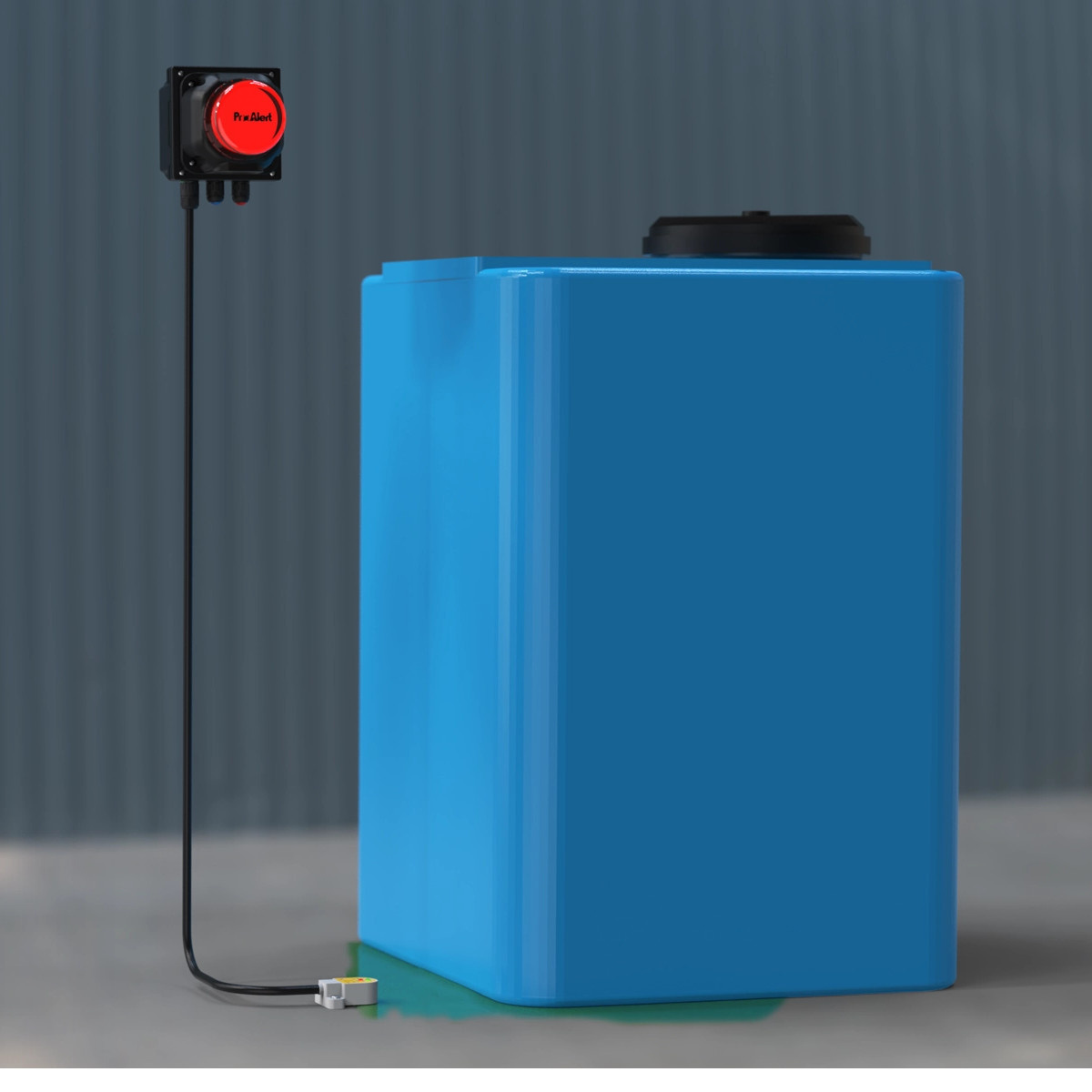

Their low-profile floor-mount design allows installation directly on tank floors, secondary containment areas, sumps, beneath pumps and fittings, and within the interstitial space of double-walled tanks.
A corrosion-resistant PP (Polypropylene) body and PVC cable make the LD Series suitable for demanding environments involving acids, bases and corrosive chemicals, subject to verification of material compatibility with the specific chemical and operating conditions.
Technical Specifications
| Specification | LD Series |
| Models | LD-01N / LD-01P |
| Sensing principle | Capacitive, fail-safe |
| Detected media | Electrically conductive liquids |
| Body material | PP – Polypropylene |
| Cable | PVC |
| Output | NPN or PNP depending on model |
| Nominal operating voltage | 24 VDC |
| Sensitivity | Adjustable |
| Enclosure protection | NEMA 4X |
| Indication | LED power / alarm indication |
| Operating temperature | -20 to +60°C |
Models
| Model | Output | Typical Integration |
| LD-01N | NPN | Compatible PLC / alarm / control input |
| LD-01P | PNP | Compatible PLC / alarm / control input |
IMPORTANT
The LD Series is designed to detect electrically conductive liquids. It should not be considered a universal leak sensor for every liquid or chemical.
Non-conductive liquids require a different sensing technology. Sensor selection should therefore be based on the physical and electrical properties of the liquid being monitored.
Compatibility of the PP / PVC materials with a specific acid, base or chemical must be verified according to chemical concentration, temperature and actual process conditions.
![]()
