Laboratory Pump Economy max 8.000 ml/min
Verderflex Laboratory Peristaltic Pump Economy EV8000 is simple to use, ‘no frills’ range of cased drive tube pump. Ideal for benchtop use in laboratories and process environments,.
Max. flow rate: 8.000 ml/min (480 l/h)
Max. pressure: 2 bar
Description
Laboratory Pump Economy max 8.000 ml/min
Verderflex Laboratory Pump Economy max 8.000 ml/min is simple to use, ‘no frills’ range of cased drive tube pump. Ideal for benchtop use in laboratories and process environments, this compact range provides accurate flow and consistent dosing.
Economy EV8000 is available with a large selection of tube materials and diameters, the pump can be used for transfer, dosing and metering of harsh, abrasive, shear sensitive, or viscous fluids.
Technical Data
| Max. flow | 8.000 ml/min (480 l/h) |
| Pump Speed | 0 – 180 RPM |
| Control | Manually controlled through potentiometer, reversible |
| Max. Pressure | 2 bar |
| Rotor | Aluminium alloy, anodised finish, 3 rollers |
| Voltage | 110/230V 50/60Hz (150 W) |
| Tube Materials | Verderprene, Silicone, Viton® and Tygon® |
| Tube Dimensions (mm) | 12.7 x 3.2mm |
| Weight | 8,0 kg |
| Temperature | max 85 oC |
Peristaltic Tubes and Flow Rates
| Tube (ID x WT) | Min. Flow | Max. Flow |
| 12.7 x 3.2mm | 0 ml/min | 8.000 ml/min |
Flows are typical and were measured with water at 20°C with no suction lift or discharge pressure. Actual flows will vary according to suction conditions, discharge pressure and tube material.

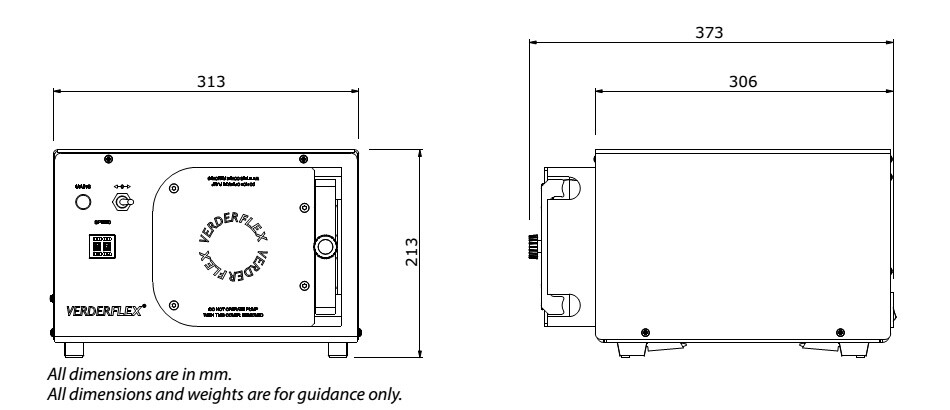

Dimensions
Downloads
Download Here:
 | 1. Download ECONOMY EV8000 Verderflex Technosheet 2. Download Verderflex Product Overview Brochure 3. Download Verderflex Peristaltic Hoses Brochure 4. Download Chemical Compatibility Quide
MANUAL |
