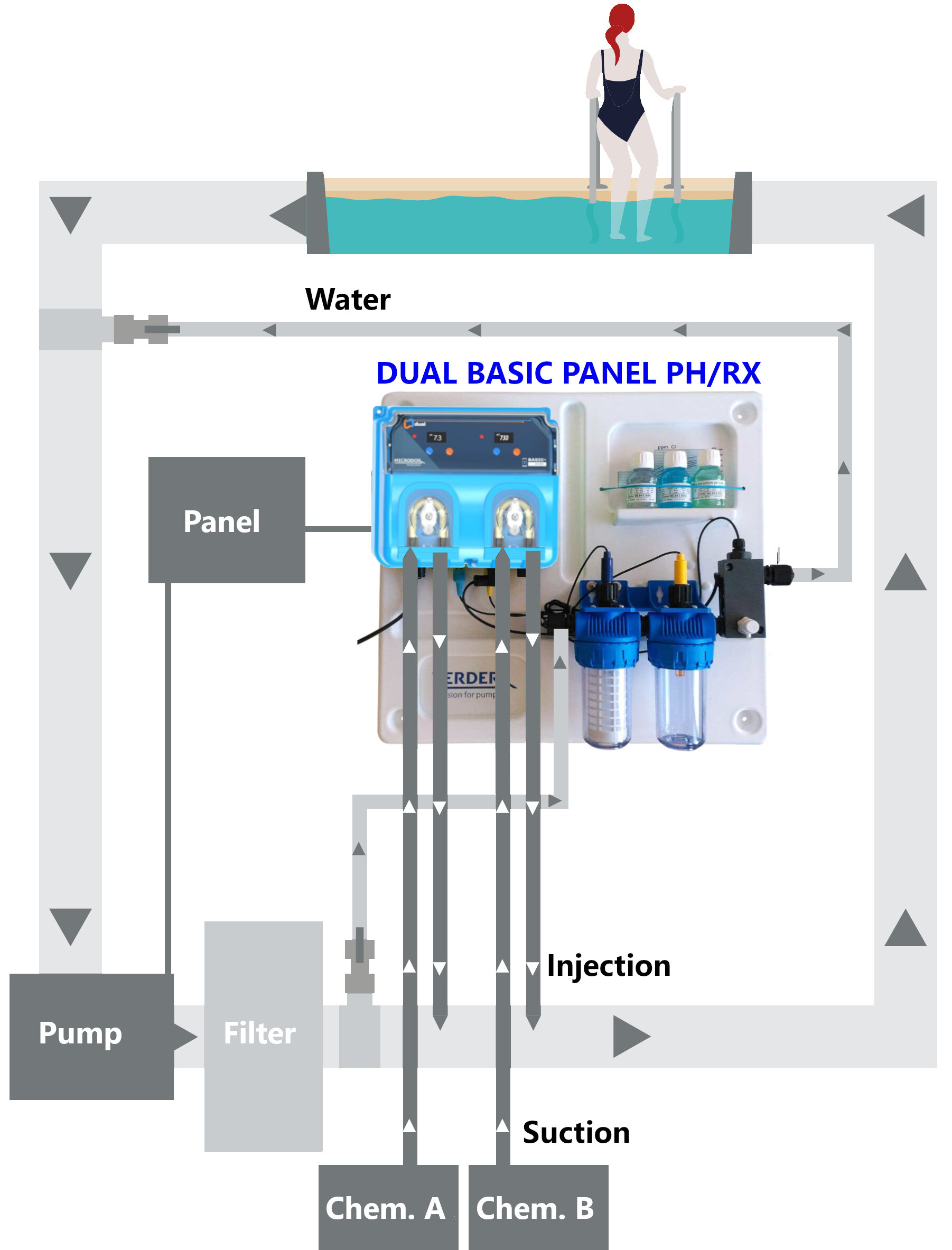

Complete Panel to Control pH and Redox with WiFi for swimming pools and water treatment plants. Easy and immediate set-up. Two buttons to program the system. Set point range between 6.0 and 8.0 PH interval 300 e 800 mV ORP interval. 4 in 1 (2instrument+2pump)

Choose the version with a local WiFi connection or with a socket outlet to connect a salt electrolysis unit (Reg) or an independent dosing pump.

DUAL BASIC PH/REDOX

Basic Cheracteristics

• Double system with built in PH/REDOX

• Flow rate showed in percentage

• 3 different functioning mode: constant, ON/OFF, proportional

• Start-up delay & Password protected

• pH stability mode for a perfect water disinfection

• Four languages menu: English, French, Spanish and Italian

• Default parameter restore option

• STAND-BY function

• Over/under range signal

• Box in PP reinforced

• Protection IP 65

• Power Supply 230vac 50-60 Hz
• ON/OFF switch
• Full chemical compatibility.

Version
DUAL BASIC

Version
DUAL BASIC+

Pack Contents

1.  Panel with “VP DUAL PH/RX” control device (standard model).
2.   2 x PVC Cristal 4×6 suction hose (4 m).
3.   2 x Polyethylene delivery hose (5 m).
4.   Attachment screw.
5.   2 x Foot filter (PVC riser).
6.   2 x FPM duckbill valve (3/8” GAS).
7.   PRO-PH and Redox electrode.
8.   2 x PSS3 probe-socket (1/2” GAS).
9.   4 x Tapping saddle for 2”hose (DN50).
10.   pH 4, pH 7 and 465 mV buffer solution kit.
11.   Sensor connection.
