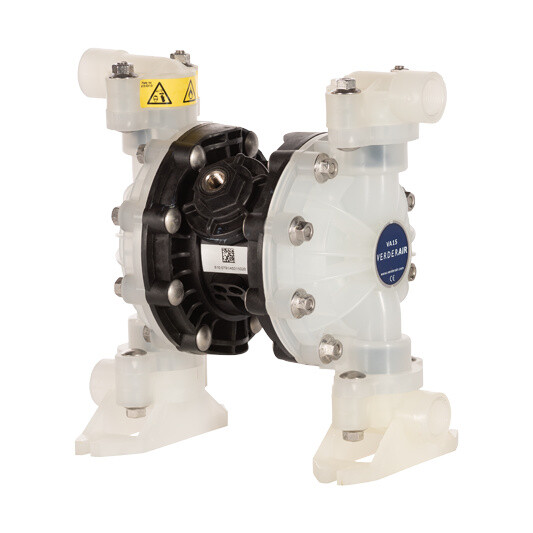

Air Diaphragm Pump AODD with Split Manifold
The Verderair VA15 SM is a compact, air operated double diaphragm (AODD) pump with two separate fluid transfers, often used in printing/paint industry.
Flow rate : 2×30 l/min.
Pressure max: 7 bar.
Description
Air Diaphragm Pump AODD with Split Manifold
The Verderair VA15 SM is a compact, air operated double diaphragm (AODD) pump with two separate fluid transfers, often used in printing/paint industry.
The Verderair VA15 SM can be used to pump or combine two liquids of similar specific gravity, such as antifreeze and water, or two different colors. This feature allows for more efficient and cost-effective pumping as it eliminates the need for two separate pumps.
The flexibility of the pump in the flow is:
- Double Suction/Double Discharge
- Double Suction/Single Discharge
- Single Suction/Double Discharge
This special feature makes the Verderair VA15 SM ideal for pumping or combining two fluids of similar specific gravity (mixing) or for pumping one or two different fluids at separate locations.
Technical Data
| VA15-SM | |
| Max. flow | 2 x 30 l/min |
| Max. discharge pressure | 7 bar |
| Liquid connections | 1/2″ BSP/NPT |
| Air conn. | 1/4″ BSP/NPT |
| Max. suction lift (wet) | 7,6 m wc |
| Max. suction lift (dry) | 4,5 m wc |
| Max. particle size | 2,5 mm |
| Viscosity | 5.000 mPa.s |
| Certificates | ATEX |
| Max. temperature | 107 °C |
| Materials liquids parts | Polypropylene, Acetal, Conductive Polypropylene, Kynar |
| Materials valve seats | Acetal, Polypropylene, Stainless Steel, Kynar |
| Materials valve balls | Buna-N, Santoprene, Stainless Steel, Hytrel, PTFE, Viton |
| Materials diaphragms | PTFE (2 piece), PTFE (overmolded), Hytrel, Buna-N, Santoprene, Viton |
| Material drive section | Polypropylene |
