Ultrasonic Level Sensors
Ultrasonic level sensors provide accurate, non-contact liquid level measurement, ideal for tanks, chemicals, and industrial applications.
Description
Ultrasonic Level Sensors
Ultrasonic level sensors are an advanced solution for continuous liquid level measurement without direct contact with the medium. Using ultrasonic wave technology, they deliver reliable and precise level monitoring in tanks, open channels, and industrial processes.
This technology is especially suitable for applications where:
- The liquid is corrosive or hazardous
- Sensor contact must be avoided
- Harsh conditions such as vapors or fumes are present
Equipped with durable PTFE transducers, 4–20 mA and RS485 outputs, these sensors integrate seamlessly into automation and remote monitoring systems.
Features:
- Up to 0.15% Accuracy
- Small Dead Band
- Simple Programming | Under 1 minutes
- Loop Powered | 2 Wire (4-20mA) Output
Advanced Features:
- LCD display for real-time readings
- Outputs: 4–20 mA, RS485 (Modbus)
- PTFE (Teflon®) transducer
- Explosion-proof options available
Technical Features
 |
|
|
| Features |

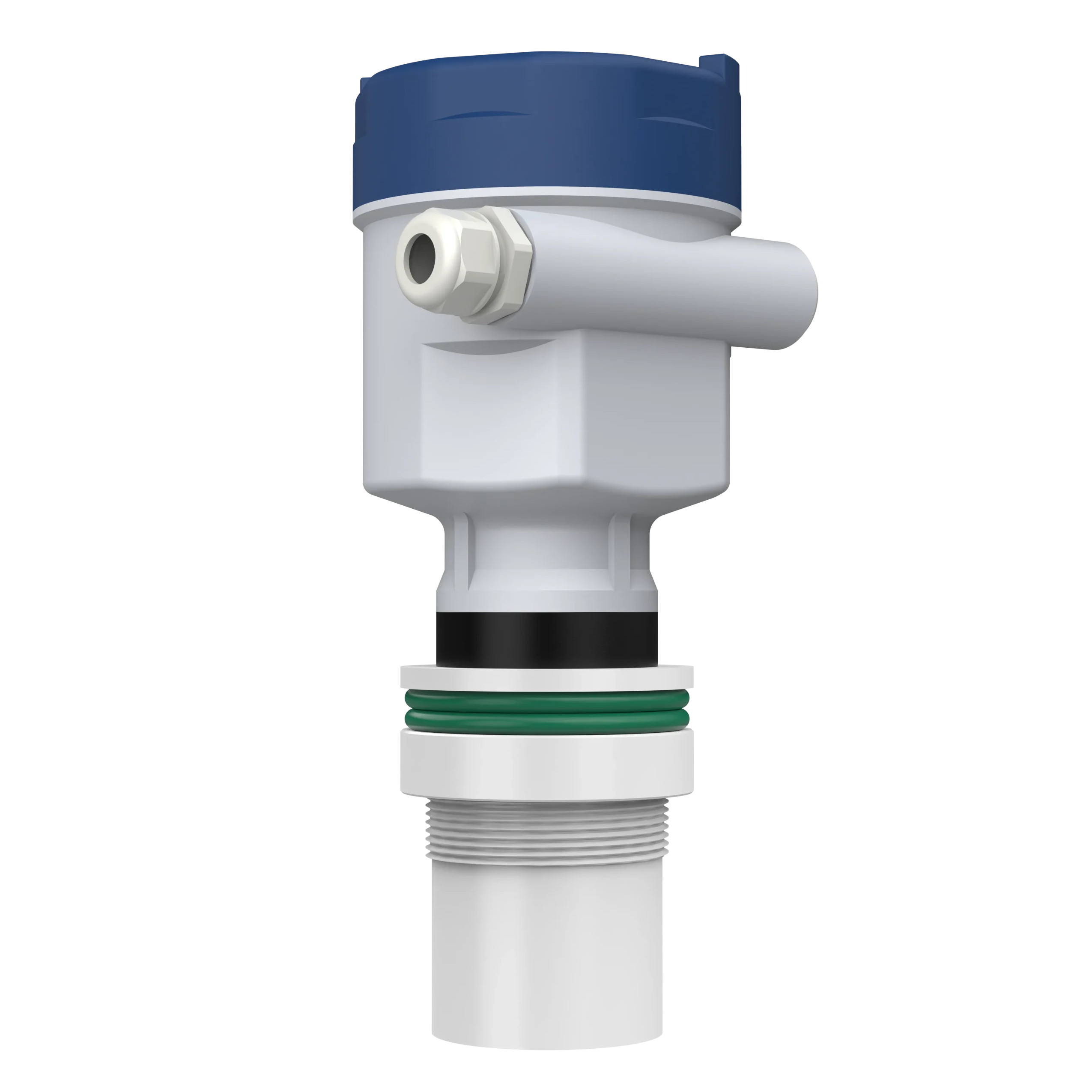

UltraPro 2000
|

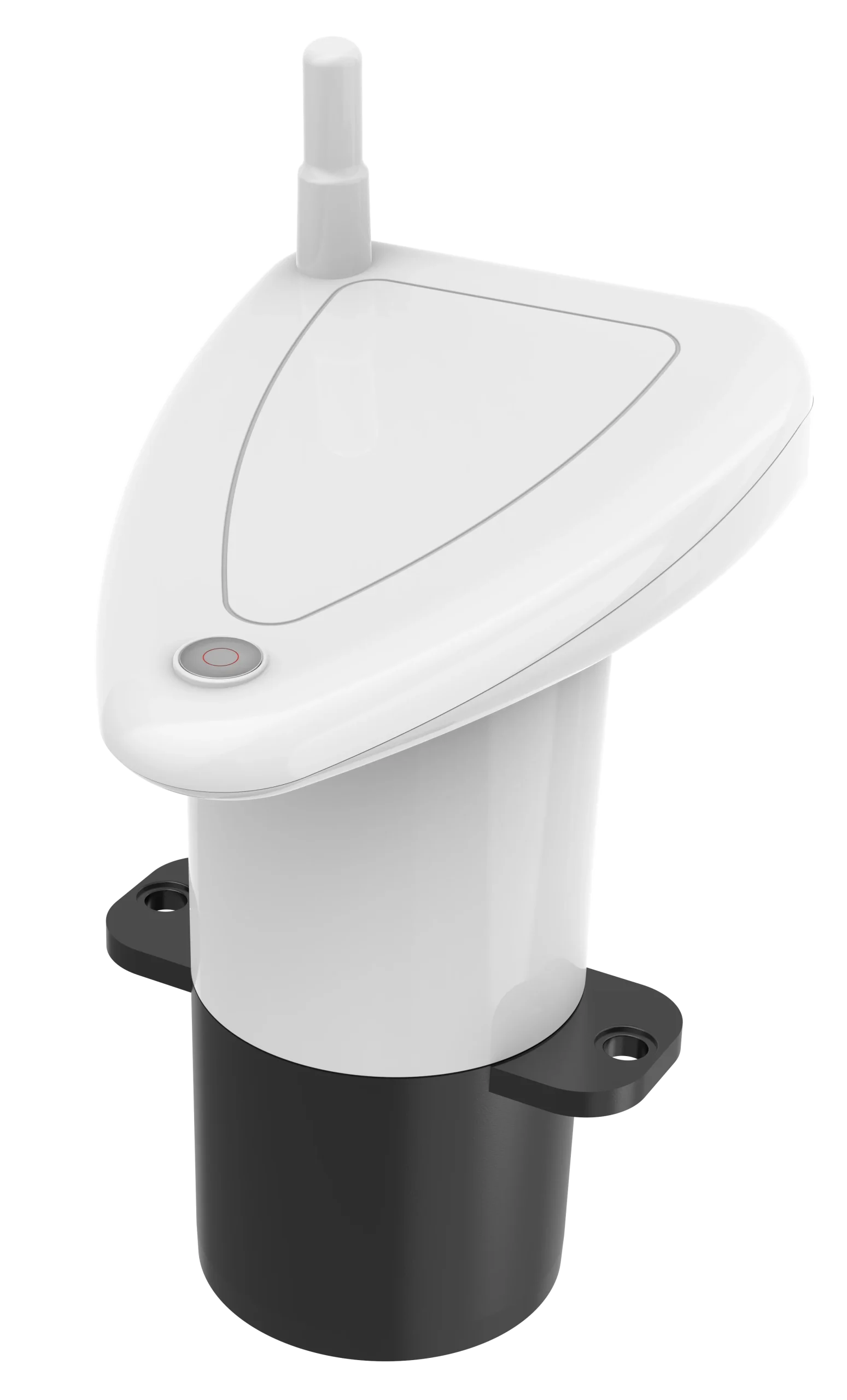

ViewSonic |
| Classification | General Purpose | Explosion Proof | General Purpose |
| Max Range(s) | 5M | 10M | 3M |
| Output | 4-20mA + HART | RS-485 Modbus | N/A |
| Display | LCD Display | LED Indicator | Wireless LCD Display |
| Body Material | PTFE TEFLON® | PP |
| Process Connection | 2” NPT | 1 ½” NPT |
| Power Supply | 18-36 VDC | Battery |
| Transducer | PTFE TEFLON® | PP |
| Documentation |
Ask A Quote
Fill the form to get a quote or more information about the product.
Category
Ultrasonic Liquid Level Sensors
Accurate Reading, Every Time
Streamlined Precision for Every Application
- Loop Powered | 2 Wire 4-20mA
- Simple Programming
- Small Dead Band
Clarity and Safety in Every Environment
- LCD Display
- 4-20mA | RS485 Outputs
- PTFE Teflon® Transducer
- Explosion Proof Option
