Description

Description

The open amperometric free Chlorine reading probe offer a stable and precise measurement. The detection is performed using a copper and platinum electrode. The cells usually are used in the main pipe of the process liquid through a by-pass.

The flow of water that passes through the housing to the outflow must be stabilized to 40 l/h to ensure the best quality of measurement.

For use with the flow trough probe holder in plexiglass PRO-HCG-CL3 that allows the use of a pH or redox electrode and a temperature one.

General Specifications

• Resolution from 0,05 to 5,00 ppm
• Rates of first polarization 4h.
• Ri-polarization: around 10 minutes
• Working pressure max 1 bar
• Response time T90: 30 sec. / 2 min
• Accuracy: ± 2% f.s.
• Duty flow rate 40l/h.
• Connection: 1/2” male fittings for 8×12 tube
• Floating flow switch

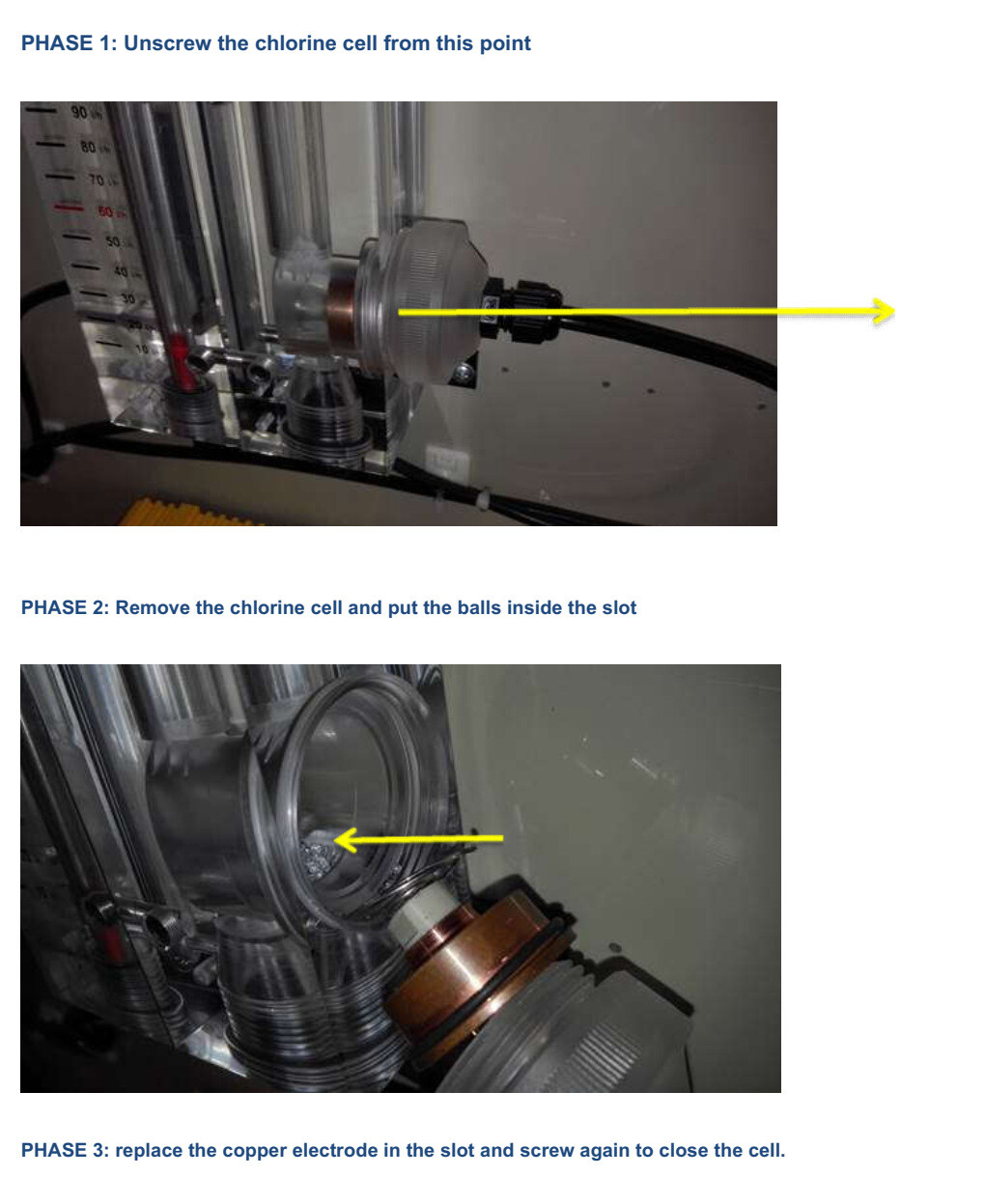

• Self cleaning with pyrex balls operated by the flow of the water
